Description
Multichannel Surround
- DTS HD Master / DTS:X Yes / No
- DTS Neo:6 / DTS Neural:X Yes / No
- Dolby TrueHD / Dolby Atmos Yes / No
- Dolby ProLogic Il / Dolby Surround Yes / No
- Multichannel Stereo Yes
- Dialog Enhancer Yes
- Max. number of processing (preamp) channels 5.1
Sound Enhancements
- Discrete Power Amplifier 5
- Pure Direct yes
- Audyssey MultEQ
- Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
- Compressed Audio Restorer Yes
Network
- HEOS Multiroom and Streaming Yes
- Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
- Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
- Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
- DSD Audio Streaming up to DSD5.6
- FLAC HD 192/24 Yes
- WAV 192/24 Yes
- ALAC 192/24 Yes
- Gapless playback Yes (FLAC, WAV, ALAC ,DSD)
- AirPlay Audio Streaming Yes (AirPlay2)
- Roon Tested Yes
- Internet Radio Yes (TuneIn)
- Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
- Amazon Prime Music* Yes
- Compatible with Remote APP for Smart Phones Android / iOS
- Compatible with Remote APP for Tablets Android / iOS/Amazon Kindle
- Ethernet Ports Yes
- Wi-Fi Yes
- Bluetooth Yes
- Bluetooth Headphone transmission Yes
- Bluetooth Headphone Volume Control Yes
HDMI
- HDMI Inputs: Back/Front 6 (3x 8K) / 0
- HDMI Outputs: Main/Zone 1 / No
- HDMI max Resolution (8k / 4k) 8k/60 – 4k/120
- HDMI to HDMI Scaling up to 8K 60/50
- HDMI: 8K / 4K / CEC / eARC Yes / Yes / Yes / Yes
- HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG Yes / Yes / Yes / Yes
- HDMI: ALLM / QMS / QFT / VRR Yes / No / Yes / Yes
- HDMI pass-though in standby mode Yes
Multiroom / CI
- HEOS Multiroom integrated Yes
- TV Sound grouping Yes
- Main room multichannel audio – Zone stereo downmix Yes
- Webbrowser Setup Yes
- IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes
Others
- Voice Control – Works with Amazon Alexa Yes
- Voice Control – Google Assistant / Apple Siri Yes
- Auto speaker setup by microphone Audyssey MultEQ
- Front Display 1 line FLD
- Graphic User Interface – GUI High Definition 1080p
- GUI languages 3
- Setup Assistant Yes
- Quick Select Plus / Quick Select Yes / No
- Firmware Update by Network / USB Yes / Yes
- Variable Crossover Yes
- Optimized Bass Redirection Yes
- HDMI Diagnostic Mode Yes
- ECO Mode Yes
- Auto Power off Yes
- Sleep Timer Yes

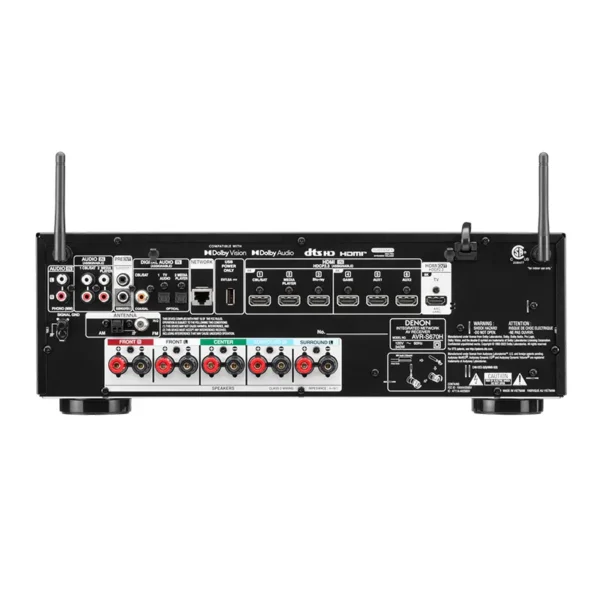

Inputs/Outputs
- HDMI In/Out 6 / 1
- Analog In/Out 2 / No
- Phono (MM) In Yes
- Digital in: Optical/Coaxial 2 / 1
- Multichannel Pre-Out Yes (0.2)
- Subwoofer Out 2
- Speaker Terminal: Gold-Plated Screw / Regular Screw No / Yes
- Number of Speaker Terminals 5
- USB Audio Input Front Yes
- USB Power 5V/1.5A Rear Yes
Specifications
- Number of Power Amps 5
- Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) 75 W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 100 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 150W
General
- Available colors: Black / Premium Silver Yes / No
- System Remote Control RC-1258
- Power Consumption in W 340
- Power Consumption No-Sound (ECO on / off) in W 29 W / 39 W
- Standby Consumption in W 0.1
- CEC Standby Consumption in W 0.5
- Network Standby Consumption in W Less than 2.0
- Maximum Dimensions
Antenna:Horizontal:(W x D x H) in (in)
( Antenna:Vertical :(W x D x H) in in)
17.1× 13.3 × 6.0 (in)
- Carton Maximum Dimensions (W x D x H) in (in) 20.6 x 17.1 x 9.1 (in)
- Weight in lbs 17.2 (lbs)
- Carton Weight (inc. product) in lbs 21.4 (lbs)
