Description
Audio System
Power Amplifier Rated output
–
Analog output Output level
FIX : 2.0 Vrms (10 kΩ/kohms)/Variable
Total Distortion
ANALOG IN: 0.01 %(1 kHz)
SN ratio: ANALOG IN
90 dB (Audible Range)
Frequency response
20 Hz to 20 kHz : ±0.5 dB
Music Sources
Music Services Supported
Pandora, Spotify, TuneIn, Napster, SiriusXM, Amazon Music, Tidal, iHeartRadio, Deezer, Mood:Mix and SoundCloud with more coming soon.
Subject to availability in your area
Music Stored On Phone/Tablet iTunes
Music stored locally on your iOS device or music files on your Android or Kindle Fire device.
NAS (Network Attached Storage)
Play from your home network: DLNA compliant.

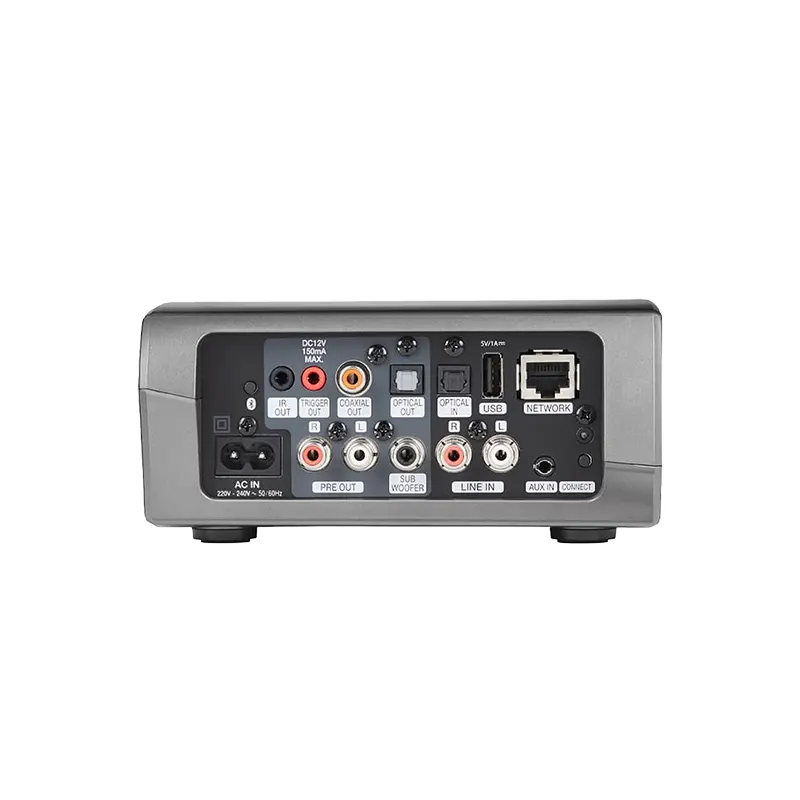

Audio outputs
Analog (variable/fixed), Digital coax, Fiber optic.
USB Storage
Connected to the HEOS Link or other HEOS player.
Aux Input
Analog or optical digital sources connected to the HEOS Link or other HEOS players.
Music Downloads
DRM-free downloads from any service.
Subject to audio format support
Album Art Supported
JPG, PNG, BMP and GIF picture formats.
Internet Radio Supported: Streaming AAC,
MP3, WMA (via the TuneIn service).
Audio Formats Supported
WMA: Up to and including 192kbps
AAC and MP3: Up to and including 320kbps
WAV, ALAC and FLAC: Up to and including
24-bit/192kHz.
DSD: 2.8MHz, 5.6MHz
Bluetooth Supported
Play on one speaker or add other HEOS speakers
in party mode.
Internet Radio Supported
Streaming AAC, MP3, WMA (via the TuneIn service).
Networking
Wireless Connectivity
Supports latest dual band wireless networks (including 802.11 a/b/g/n/ac standards).
Wired Connectivity
Single RJ-45 jack for connection to wired Ethernet
General
Power Supply
AC 120 V, 60 Hz
Weight
2.9lbs
Operating Temperature Range
41°F to 95°F
Dimensions (H x W x D)
2.91in x 6.14in x 5.83in
Product Finish
Gunmetal Silver front, top and back panels with black sides.
Package Contents
HEOS Link
Power cable
3.5mm setup cable
Ethernet cable
Quick Start Guide
RCA cable
IR emitter cable
IR direct cable

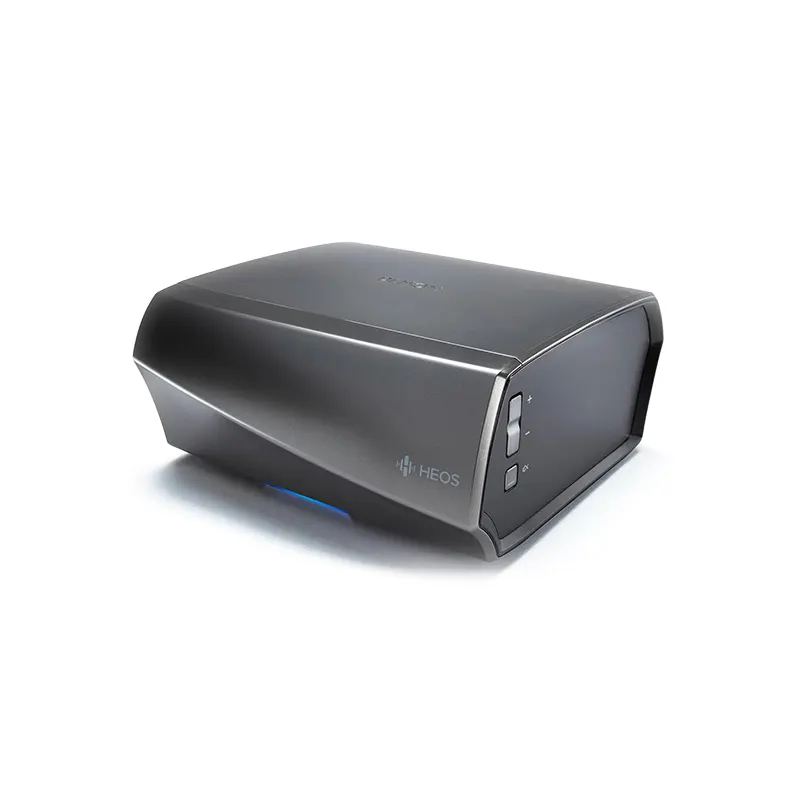

Buttons and Indicators
Volume up/down
Mute / Mute button LED indicator
Multicolored LED status indicator
Network ‘connect’ button (rear)
Bluetooth ‘connect’ button (rear)
