Description
Design

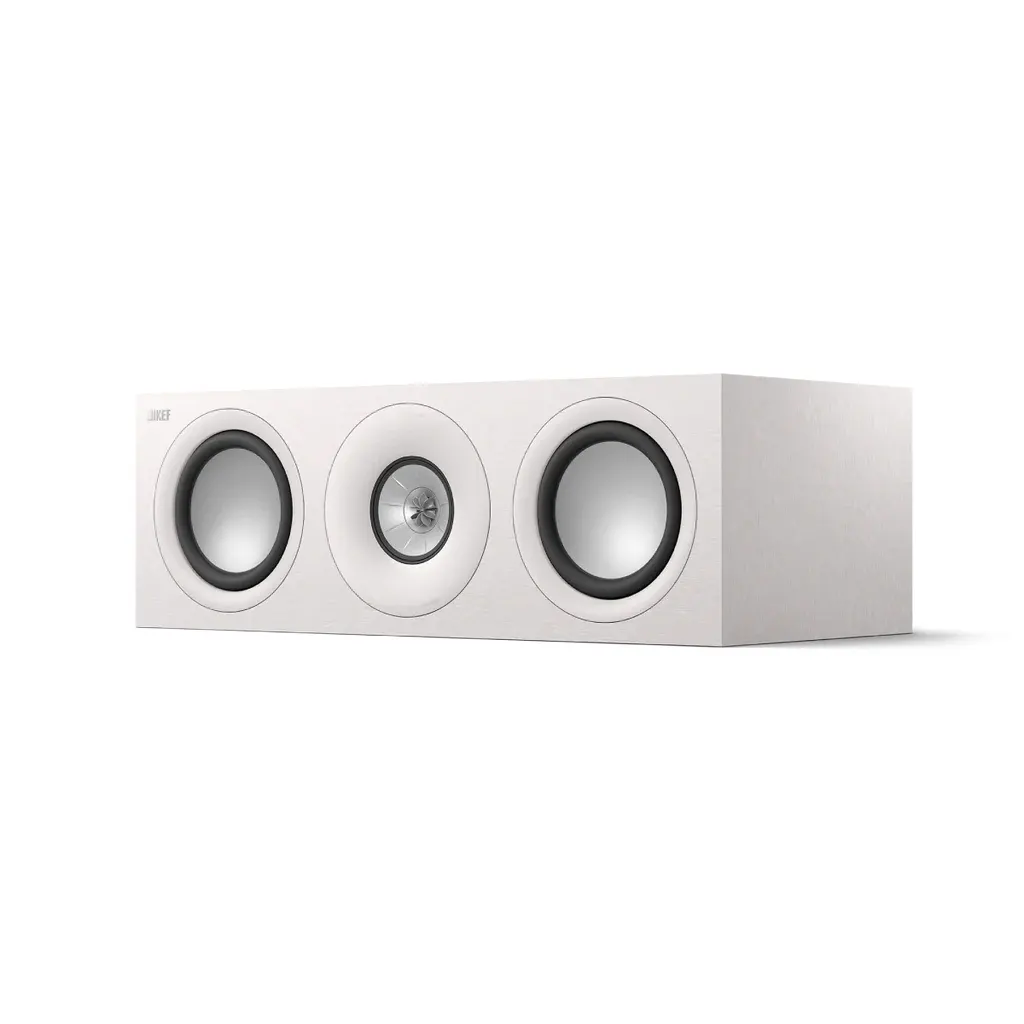

Three-way closed box
Drive units
Uni-Q Driver Array:
HF: 19 mm (0.75 in.) vented aluminium dome with MAT
MF: 100 mm (4 in.) aluminium cone
Bass Unit: LF: 2 x 165 mm (6.5 in.) hybrid aluminium cone
Frequency range (-6dB)
52 Hz – 20 kHz
Typical in-room bass response (-6dB)
36 Hz
Frequency response (±3dB)
63 Hz – 20 kHz
Crossover frequency
560 Hz, 2.7 kHz
Amplifier requirements
15 – 200 W
Sensitivity (2.83V/1m)
86 dB
Harmonic distortion (90dB, 1m)
<2% 20 Hz and above
<1% 68 Hz – 20 kHz
Maximum output
109 dB
Impedance
4 Ω (min. 3.2 Ω)
Weight *
14.1 kg (31.1 lbs.)
Dimension (H x W x D) with terminal *
210 x 629 x 303 mm (8.3 x 24.8 x 11.9 in.)
Finishes

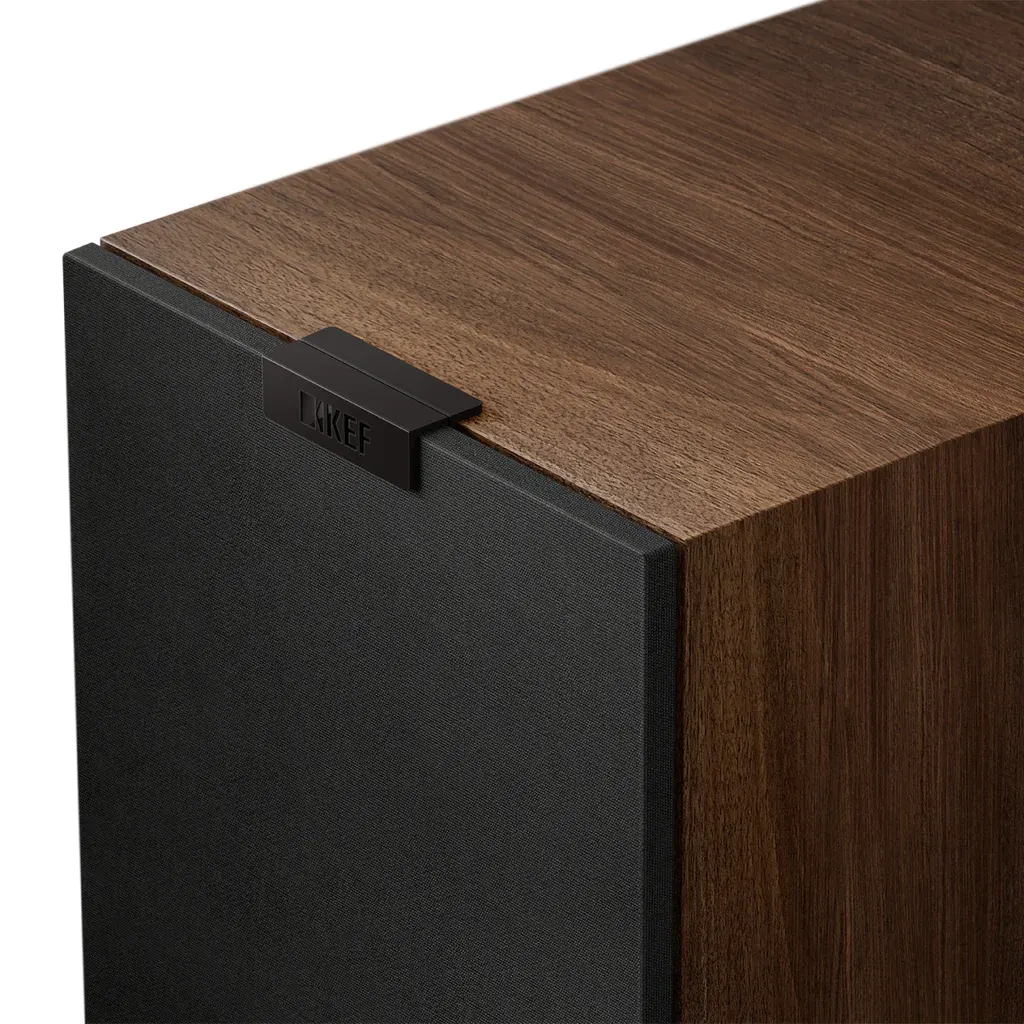

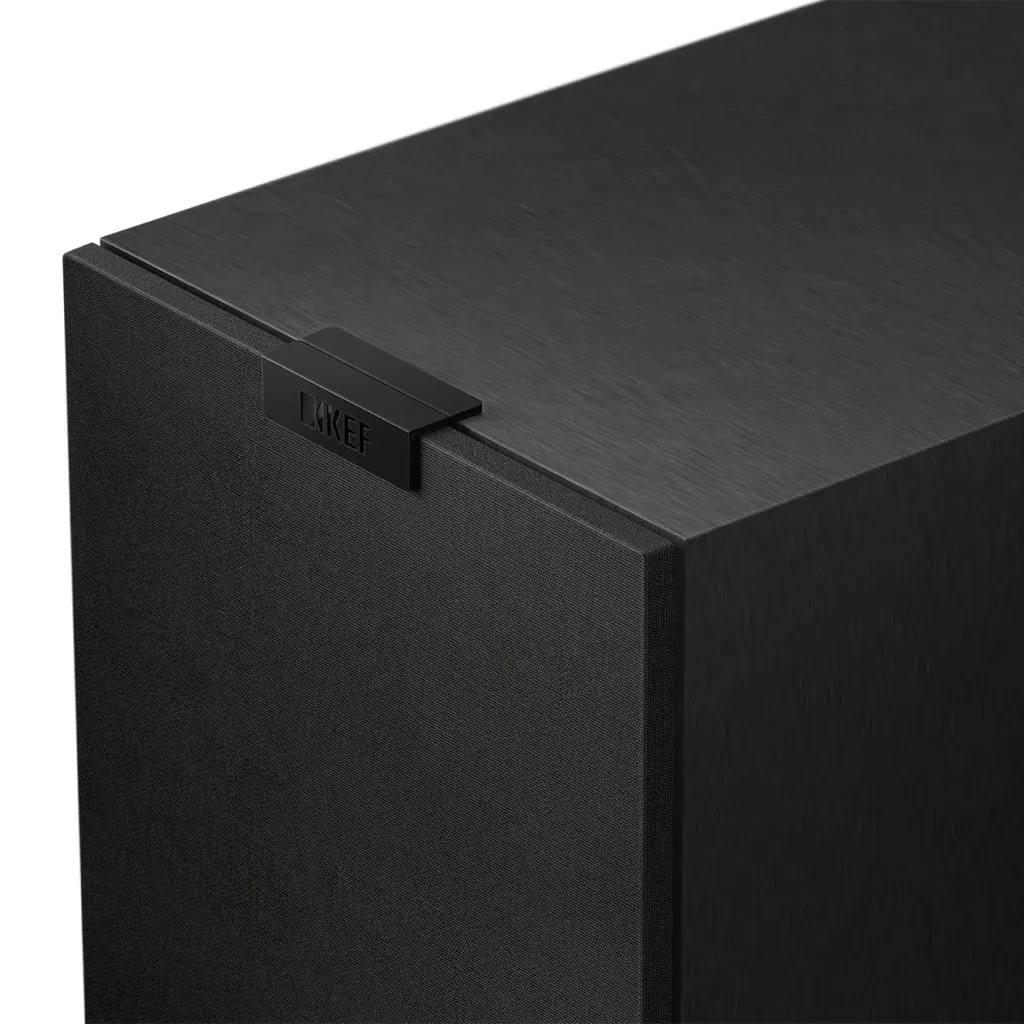

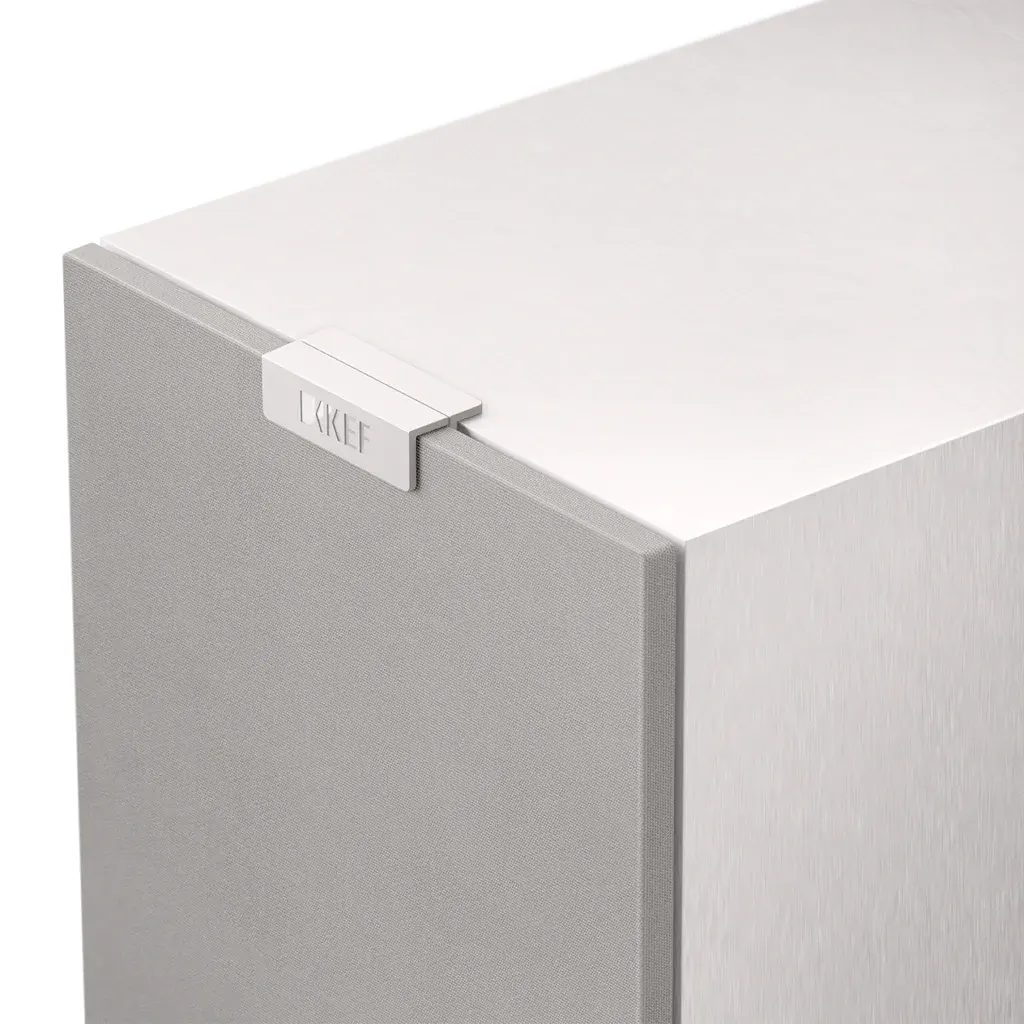

Satin Black / Satin White / Walnut
