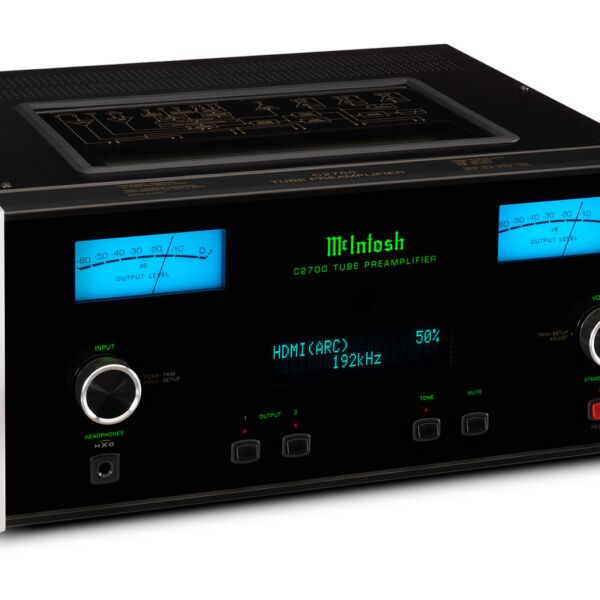

Mcintosh c2700

Description

ELECTRONIC SPECIFICATIONS

• • Number of Channels
    2
  • Total Harmonic Distortion
    0.08%
  • Frequency Response
    +0, -0.5dB from 20Hz to 20kHz
    +0, -3dB from 15Hz to 100kHz
  • Maximum Volts Out (Balanced / Unbalanced)
    16V RMS / 8V RMS
  • Sensitivity High Level (Balanced / Unbalanced)
    900mV / 450mV
  • Sensitivity Phono (Moving Coil)
    0.45mV
  • Sensitivity Phono (Moving Magnet)
    4.5mV
  • Signal To Noise Ratio (High Level)
    100dB
  • Signal To Noise Ratio (Moving Coil)
    80dB
  • Signal To Noise Ratio (Moving Magnet)
    82dB
  • Voltage Gain (High Level)
    15dB
  • Voltage Gain (Moving Coil)
    60dB
  • Voltage Gain (Moving Magnet)
    40dB
  • Input Impedance (Balanced / Unbalanced)
    44K ohm, 22K ohm

CONNECTIVITY

• • Balanced Input
    3
  • Unbalanced Input
    4
  • Phono Input Moving Coil
    1 (adjustable)
  • Phono Input Moving Magnet
    1 (adjustable)
  • Upgradeable Digital Audio Module
    Yes: DA2
  • Digital Coaxial Input
    2
  • Digital Optical Input
    2
  • Digital MCT (DIN) Input
    1
  • Digital USB Input
    1
  • HDMI (ARC) Input
    1
  • Digital AES/EBU Input
    0
  • Balanced Fixed Output
    0
  • Balanced Variable Output
    3
  • Unbalanced Fixed Output
    1
  • Unbalanced Variable Output
    3
  • Headphone Output
    1/4″ High Drive with Headphone Crossfeed Director (HXD®)
  • Input Level Match
    Yes, +/- 6dB
  • Home Theater PassThru
    Yes
  • Unbalanced Analog Connector Type
    Premium gold-plated solid brass
  • Service Port
    1

CONTROL

• • Tone Controls
    Bass and Treble
  • Tone Bypass and Input Assign
    Yes
  • RS232 Control Input
    Yes
  • Power Control Output
    1 Main, 4 Trigger
  • Rear Panel Data Port
    6
  • Rear Panel IR Sensor Input
    Yes

GENERAL SPECIFICATIONS

• • Multi-Chassis or Single
    Single, two layer
  • Output Meters
    Yes
  • Vacuum Tube or Solid State
    Vacuum Tube
    (5) 12AX7a and (1) 12AT7
  • Power Consumption (On)
    50 Watts

WEIGHTS & DIMENSIONS

• • Unit Dimensions (W x H x D)
    17.5″ (44.45cm) x 7.625″ (19.37cm) x 18″ (45.72cm)
  • Unit Weight
    29.5 lbs (13.4kg)
  • Shipping Weight
    45 lbs (20.4kg)
