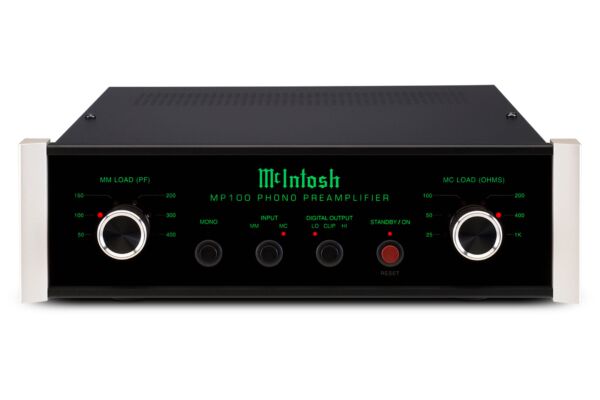

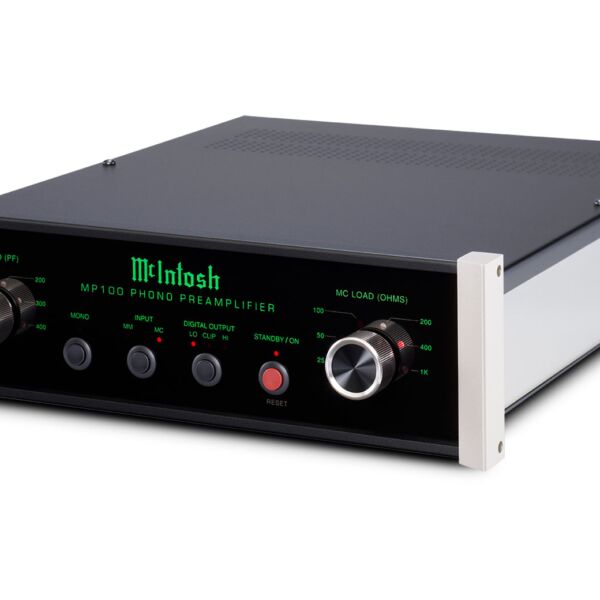

Mcintosh mp100

Description

• ELECTRONIC SPECIFICATIONS
  • Total Harmonic Distortion
    0.005%
  • Frequency Response
    ±0.3dB from 20Hz to 20,000Hz
  • Maximum Volts Out (Balanced / Unbalanced)
    16/8 V RMS
  • Input Impedance
    Moving Coil: 25, 50, 100, 200, 400 or 1k Ohms; 470pF
    Moving Magnet: 47k Ohms; 50, 100, 150, 200, 300 or 400pF
  • Phono Voltage Gain
    Moving Coil: 60dB
    Moving Magnet: 40dB
  • Signal To Noise Ratio
    Moving Coil: 78dB
    Moving Magnet: 80dB
  • Maximum Input Signal (Moving Coil)
    8mV
  • Maximum Input Signal (Moving Magnet)
    80mV
  • Maximum Input Signal (Balanced)
    N/A
  • Maximum Input Signal (Unbalanced)
    N/A
  • Sensitivity Phono (Moving Coil)
    1mV
  • Sensitivity Phono (Moving Magnet)
    10mV
  • Sensitivity (Balanced)
    N/A
  • Sensitivity (Unbalanced)
    N/A
  • Rated Output
    2V Balanced
    1V Unbalanced
  • Output Impedance
    200 Ohms Balanced
    100 Ohms Unbalanced
  • Phono Equalization Curves
    1: RIAA
  • Noise Filters
    0
  • Phono Profiles
    0

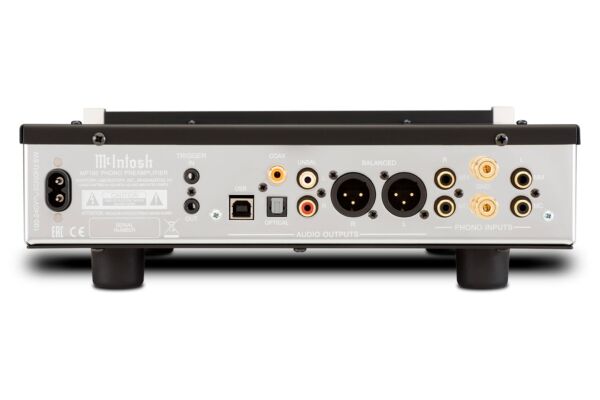

• CONNECTIVITY
  • Phono Input Moving Coil
    1 (adjustable)
  • Phono Input Moving Magnet
    1 (adjustable)
  • Phono Input Universal
    0
  • Balanced Line Input
    0
  • Unbalanced Line Input
    0
  • Balanced Fixed Output
    1 Stereo
  • Unbalanced Fixed Output
    1 Stereo
  • Digital Coaxial Output
    1
  • Digital Optical Output
    1
  • Digital USB Audio Output
    1
  • Unbalanced Analog Connector Type
    Standard
• CONTROL
  • Power Control Input
    1
  • Power Control Output
    1
• DIGITAL AUDIO SPECIFICATIONS
  • Digital Output Sample Rate
    Optical: PCM – 24-bit/96kHz
    Coaxial: PCM – 24-bit/96kHz
    USB: PCM – 24-bit/96kHz
• GENERAL SPECIFICATIONS
  • Multi-Chassis or Single
    Single
  • Output Meters
    No
  • Vacuum Tube or Solid State
    Solid State
  • Power Consumption (On)
    8 Watts
• WEIGHTS & DIMENSIONS
  • Unit Dimensions (W x H x D)
    11.5″ (29.2cm) x 3.78125″ (9.6cm) x 16.75″ (42.5cm)
  • Unit Weight
    8.6 lbs (3.9 kg)
  • Shipping Weight
    9.6 lbs (4.4 kg)
