Description
Power Output – All 5 Channels Driven
180 watts x 5, 8 Ω
255 watts x 5, 4 Ω
Power Output – 2 Channels Driven
225 watts x 2, 8 Ω
350 watts x 2, 4 Ω
Power measurements parameters with 120VAC
0.05% THD, RMS continuous power,
full audio band (20 Hz – 20 kHz)
Current Capacity:
45 amperes peak, per channel
Dynamic Headroom:
>1.5dB
Slew Rate
> 130 volts per microsecond
Frequency Response
5 Hz – 100 kHz, +0/-3 dB
20 Hz – 20 kHz, +0/-0.3 dB
Total Harmonic Distortion (THD)
< 0.05 % at full power
< 0.03 % at typical listening levels
IM Distortion
< 0.04 %
TIM
Unmeasurable
Interchannel Crosstalk
> 78 dB at 1 kHz
> 63 dB at 20 kHz
Input Impedance
Unbalanced: 47 kΩ
Balanced: 94 kΩ, 47 kΩ per leg
Input Sensitivity for 28.28 V Output into 8 Ω
Unbalanced: 1 V
Balanced: 1 V per leg
Total Gain: 29 dB
S/N Ratio
> 112 dB, input shorted, IHF A-weighted
> 102 dB, input shorted, unweighted
Damping Factor
> 1100 at 20 Hz
DC Trigger Requirements
+9 Vdc to +12 Vdc, 5 mA
Audio Trigger Requirements
2 mV – 10 mV

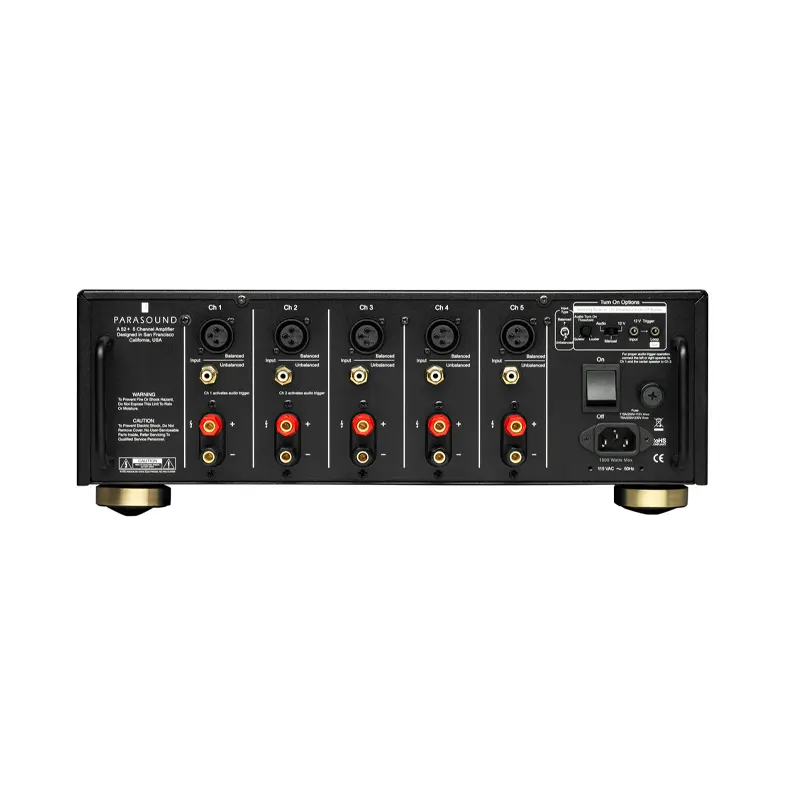

XLR Pin Identification
1 = Ground (Shield)
2 = Positive
3 = Negative (Return)
Dimensions
Width: 17-1/4″ (437 mm)
Height without feet: 5-1/4″ (133 mm)
Height with feet: 5-7/8″ (149 mm)
Depth: 20″ (508 mm)
Depth with cables: 21-1/4″ (540 mm)
Net Weight
55 lb. (25 kg)
Shipping Weight
69 lb. (31.3 kg)
Power Requirement
Standby: 1 Watt
Idle: 125 Watts
Maximum: 1500 Watts
