Description

ELECTRICAL CHARACTERISTICS
Voltage 190 – 256V
Capacity (at 230V) 3.680W
Rated current 16A
Own power consumption 10 W (all outlet groups are turned on), 1 W (all outlet groups are turned off)

Setup and control

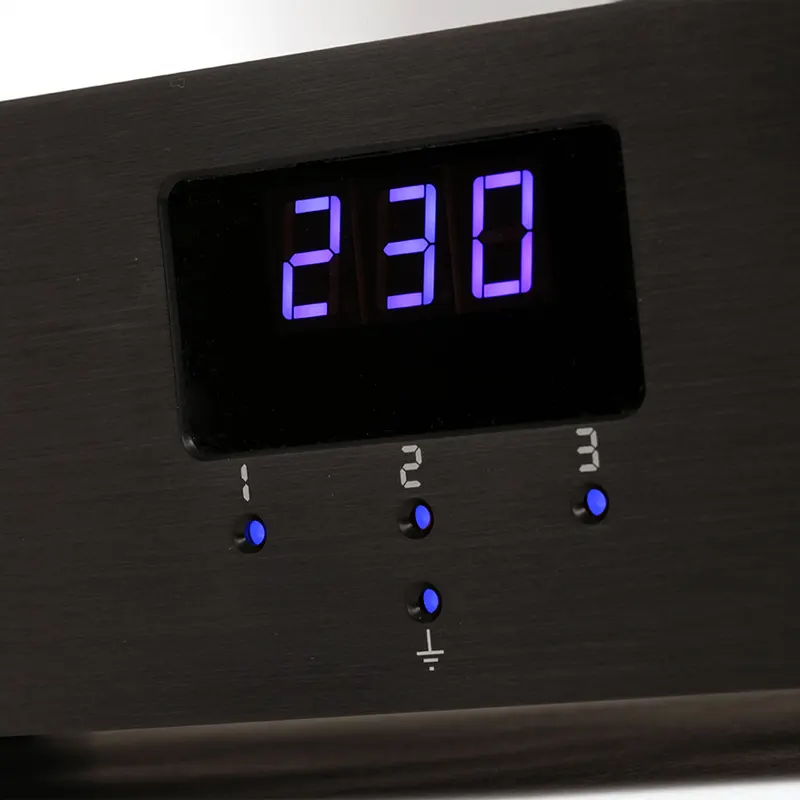

Manual control Multifunctional button on face-plate and touch sensor
ON/OFF scenarios Adjustement of delays between socket groups
12V trigger IN / OUT
RS232 integration Control4, Crestron, AMX etc.

Protected lines
220V AC Socets 6
AC line types Analog, Digital, High Current
COAX lines 1

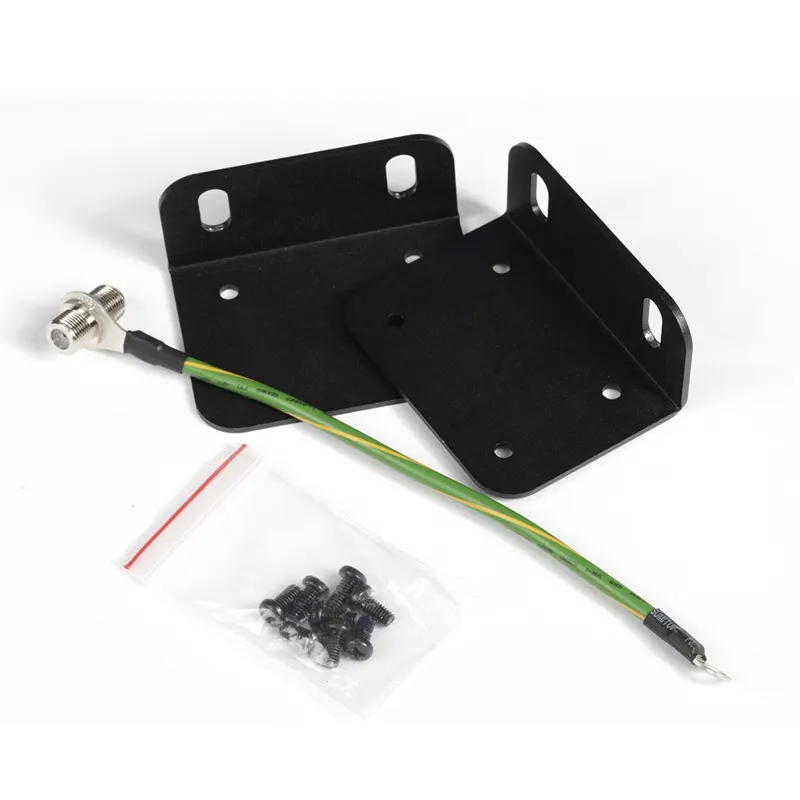

Package includes
AC power cord 1.5 m (optionally – 3 m)
19” rack mounts Included

PROTECTION PARAMETERS
Emergency limits ≤ 190 ± 4V / ≥ 256 ± 4V

General data
Faceplate material Brushed 4mm aluminum
Overall dimensions (WxHxD) 440 x 80 x 185 mm
Weight 4.8 kg
