Description
Tuning range FM-band: 87,5 – 108MHz (50kHz steps)
Programmable pre-sets: 99
Frequency response: 20Hz – 20kHz (±1dB)
S/N ratio: 50dB
THD: 0,05% / ∆f 75kHz and f mod 1kHz
Stereo separation: 30dB / ∆f 75kHz and f mod 1kHz
Sensitivity: 7dB/µV mono, 17dB/µV stereo /75 ohms

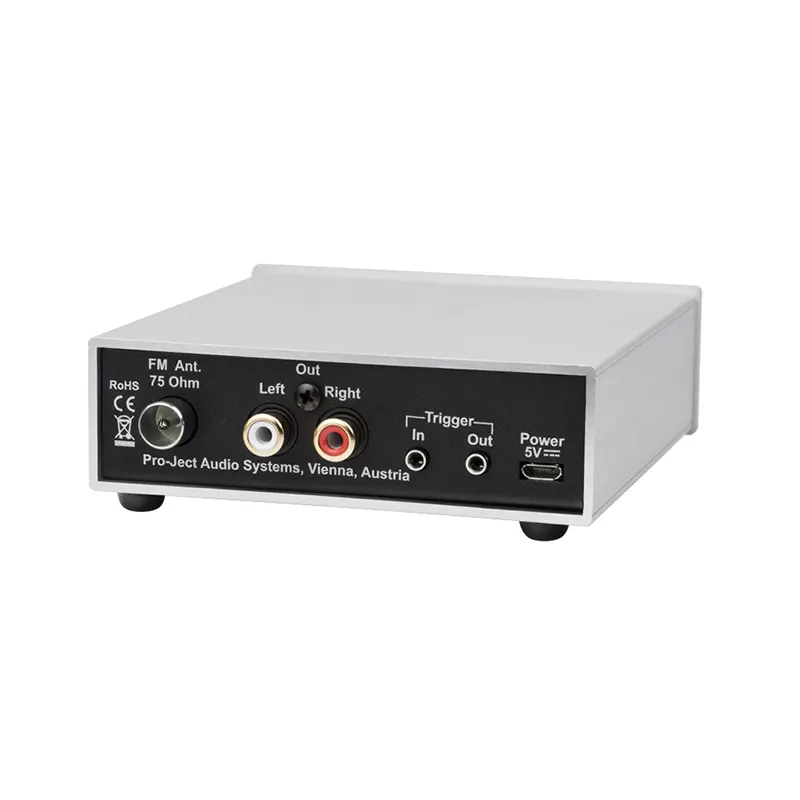

Antenna input: 1 x co-axial DIN-socket (75 ohms) / US-model F-socket
Line-level output: 1 pair RCA/phono sockets
Trigger in and out: 2-pole co-axial ∅ 2,5mm co-axial jack
Output voltage: 0,775Vrms
Outboard power supply: 5V/1A DC, 110 – 240V/50, 60Hz
Power consumption: 70mA DC, <1W in standby
Dimensions W x H x D (D with sockets): 103 x 37 x 112 (121) mm
Weight: 315g without power supply
