Description
SPECIFICATION
NOMINAL IMPEDANCE 8 ohms
RECOMMENDED AMPLIFIERS 10 to 200 watts
FREQUENCY RESPONSE 20Hz-30kHz
SENSITIVITY 89dB linear for 1 watt at 1 metre
BASS /MIDRANGE DRIVERS ProAc 165mm (6.5”) unit fitted with an acoustically damped Pagina Mica cone with phase plug.

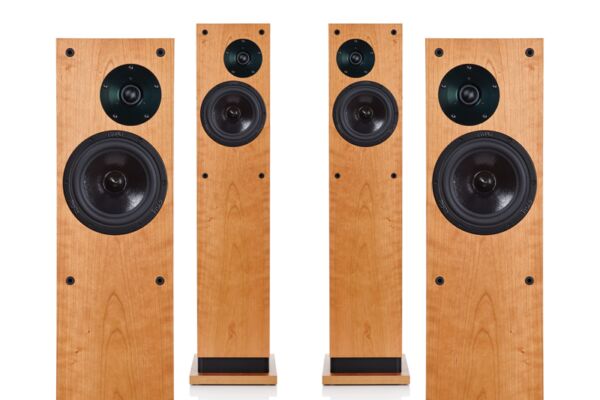

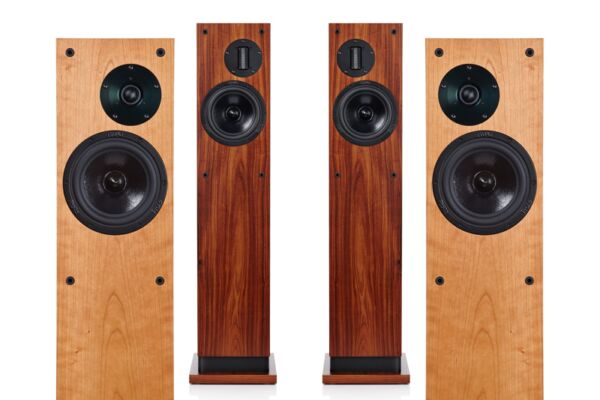

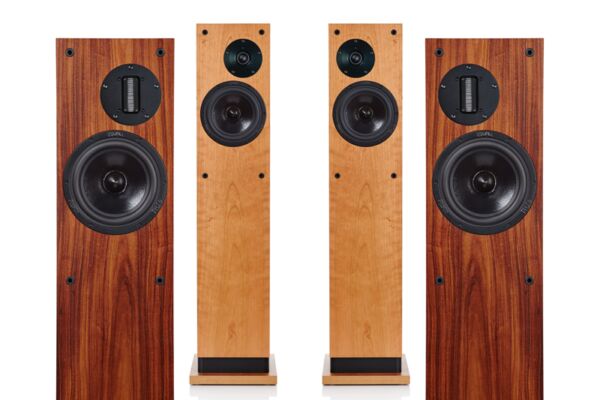

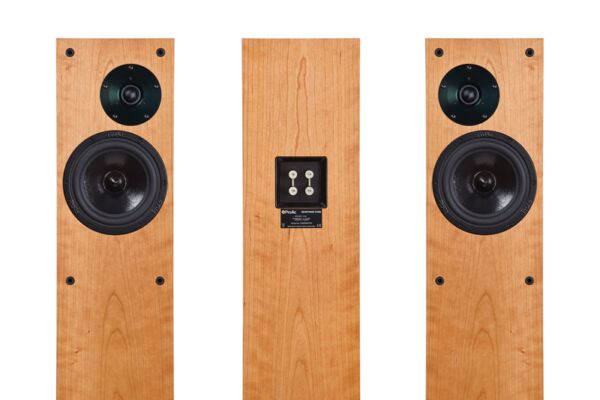

DOME TWEETER OPTION D30DS ProAc 25mm (1”) silk dome air cooled and inner damping. Mirror image offset.

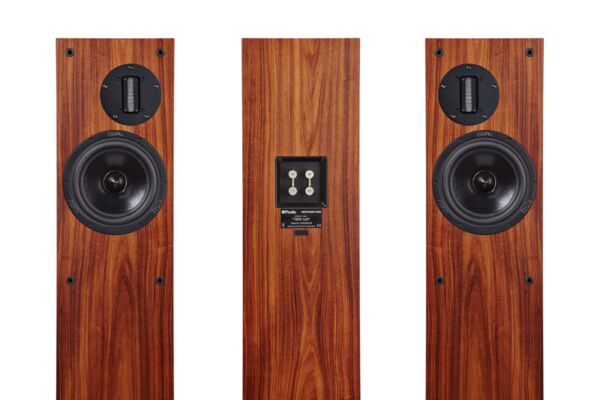

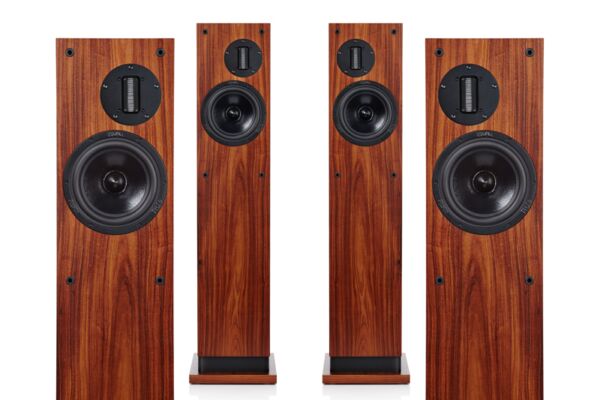

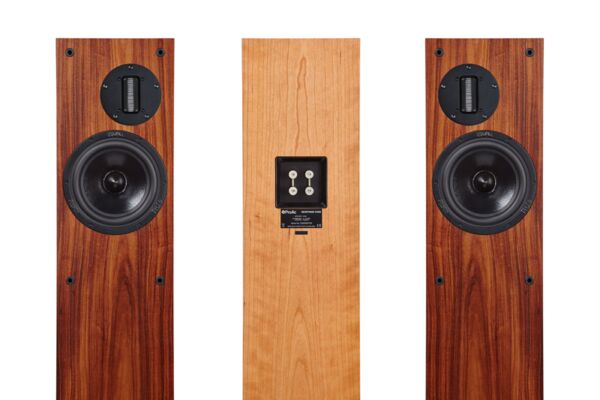

RIBBON TWEETER OPTION D30RS The ProAc ribbon tweeter has a ribbon lighter than a human hair with rear chamber damping and alnico magnet.

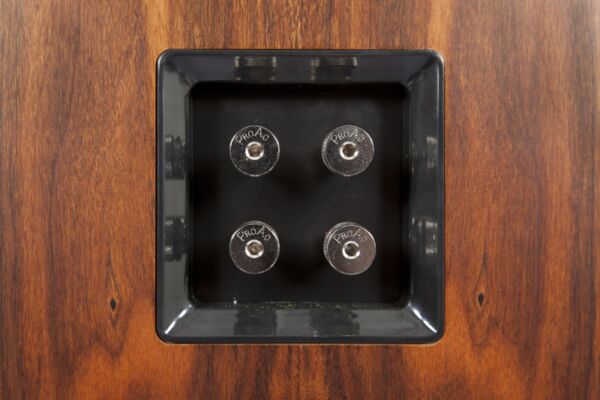

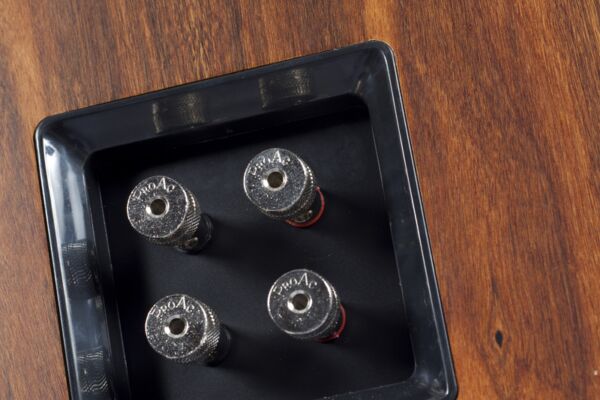

CROSSOVER Finest components on dedicated circuit board. Multistrand oxygen free copper cable throughout. Split for optional Bi wiring or Bi amplification

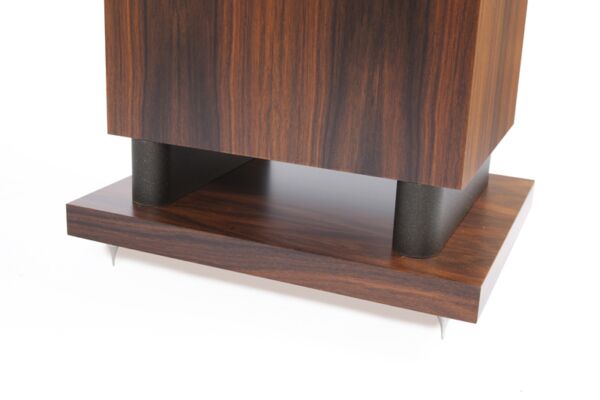

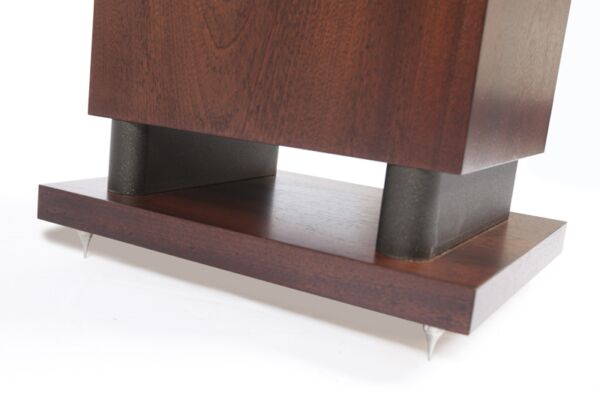

HEIGHT (CABINET) 1041mm (41”) on spikes
WIDTH (CABINET) 266mm (10”)
DEPTH (CABINET) 311mm (12”)
WEIGHT 28kg (61.72lb) each cabinet
MODE Floor standing
GRILLE Acoustically transparent crimplene
STANDARD FINISHES Black Ash, Mahogany, Cherry, Silk White, Oak and Walnut
PREMIUM FINISHES Rosewood, Ebony. *Premium Finishes to order at extra cost*
