Описание
Size & weight
Dimensions
Height: 439mm (17.3 in) including tweeter
Width: 241mm (9.5 in) cabinet only, 447
Depth: 322mm (12.7in) cabinet only, 363mm (14.3in) including grille and terminals
Net weight
16.4kg (36.0lbs)
Technical details
Technical features
Diamond dome tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST midrange
Anti-Resonance plug
Matrix™
Flowport™
Description
2-way vented-box system
Drive units
1x ø25mm (1in) Diamond dome high-frequency
1x ø165mm (6.5in) Continuum cone bass/midrange
Frequency range
-6dB 34Hz to 35kHz
Frequency response
42Hz to 28kHz (+/-3dB)
Sensitivity
88dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1 % 90Hz — 20kHz
<0.3% 100Hz – 8kHz
Nominal impedance
8Ω (minimum 4.6Ω)
Recommended amplifier power
50W – 120W into 8Ω on unclipped programme
Max recommended cable impedance
0.1Ω
Finishes
Cabinet finishes

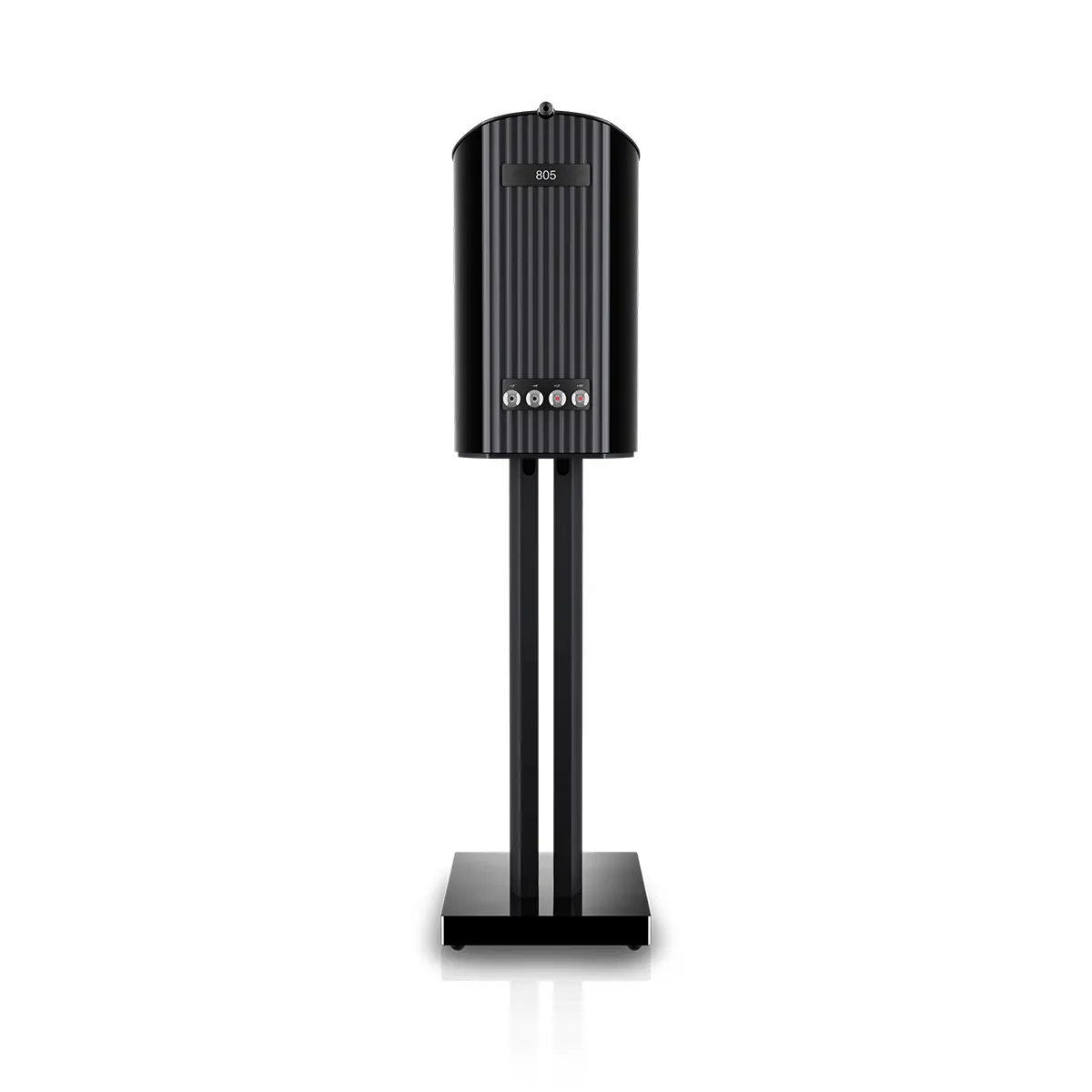

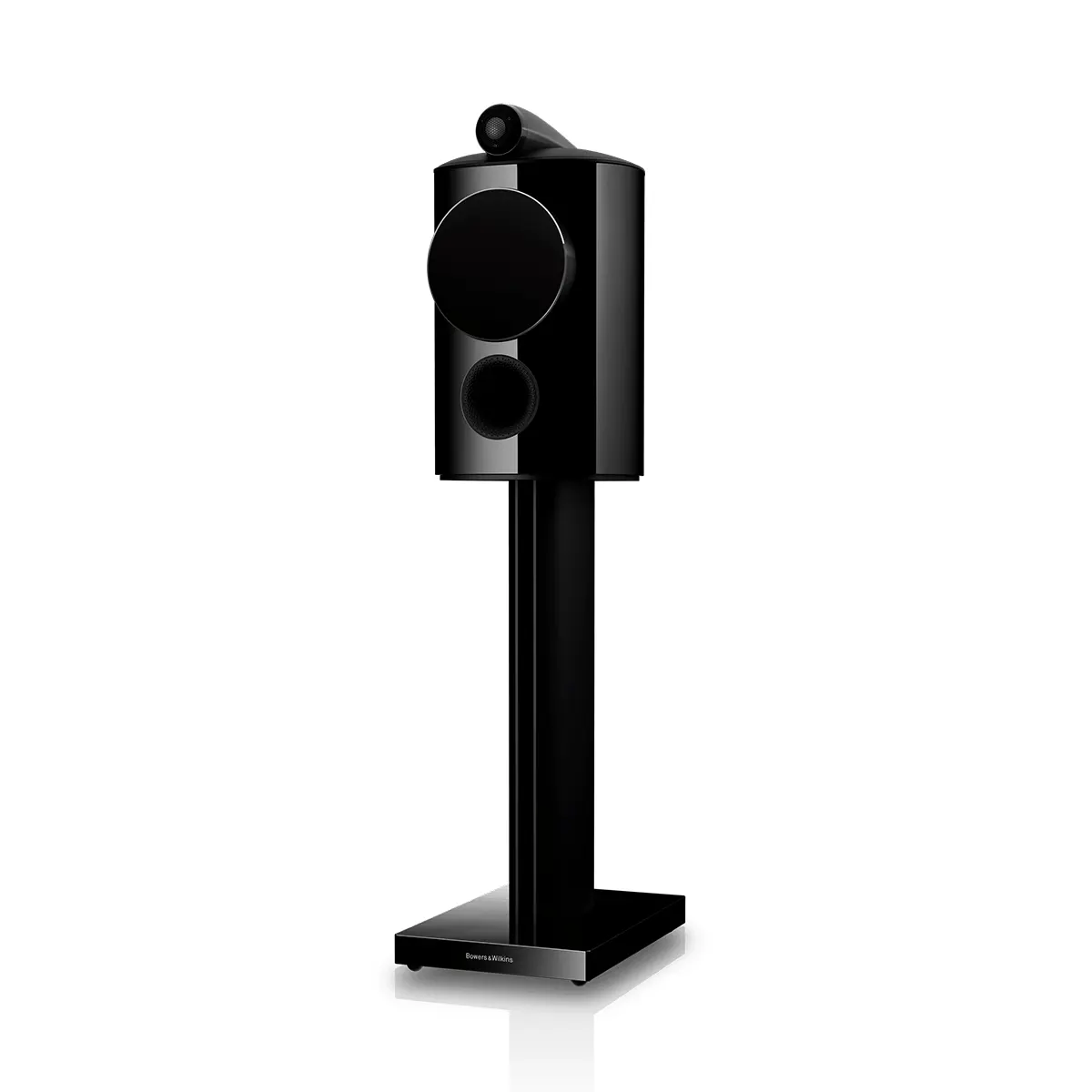

Stealth Black

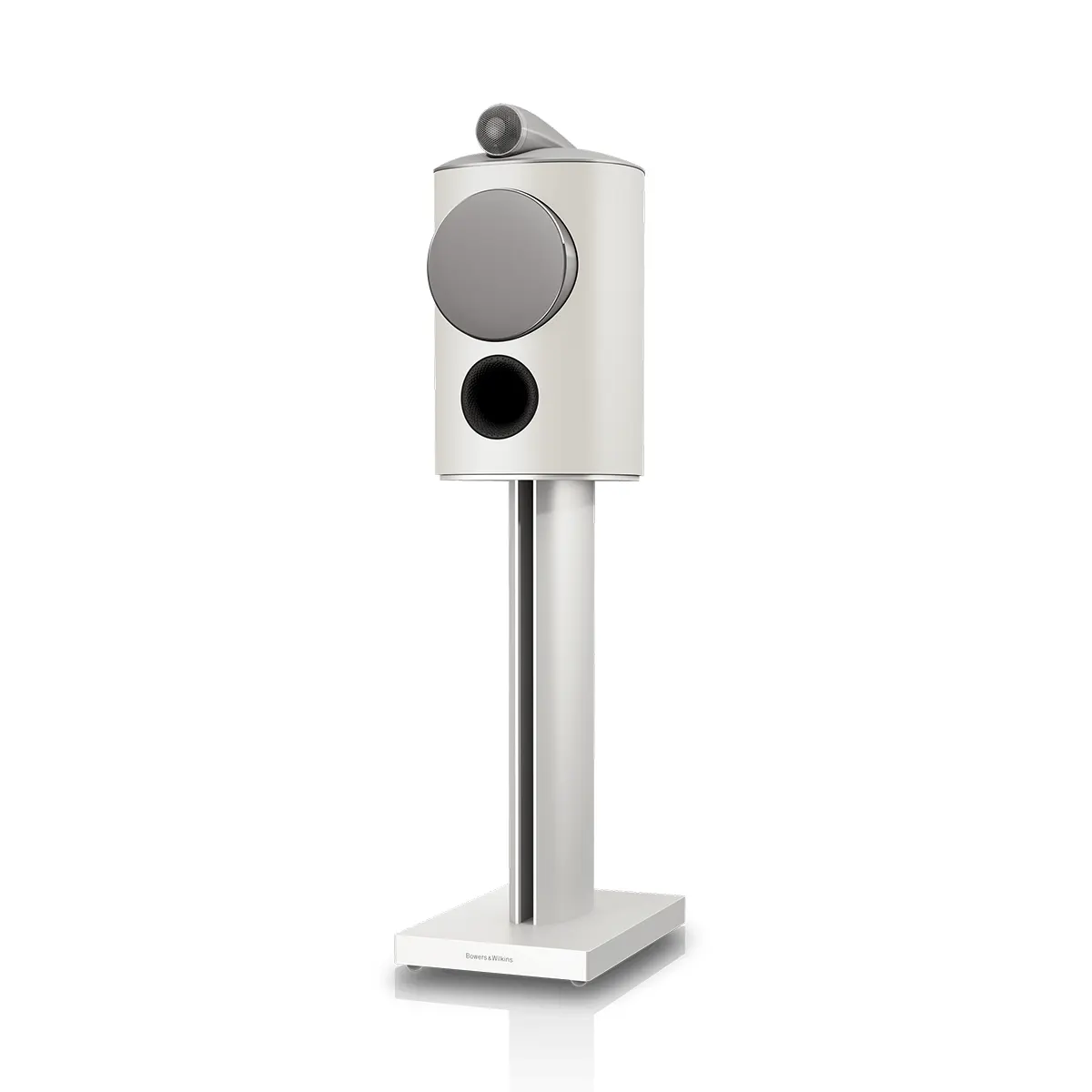

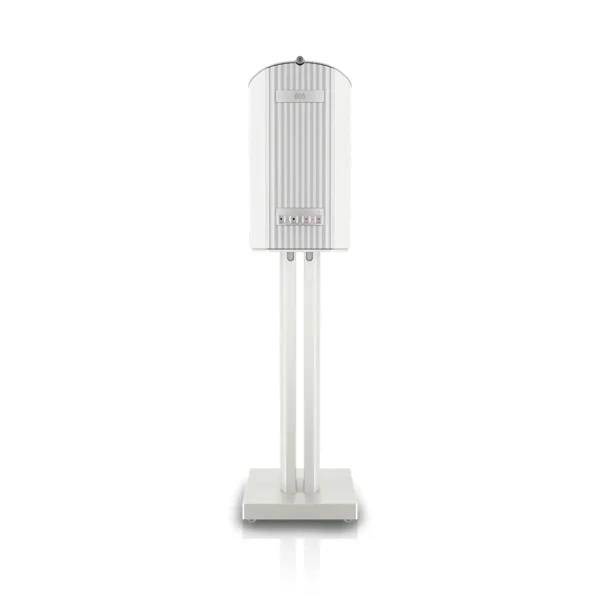

Warm White

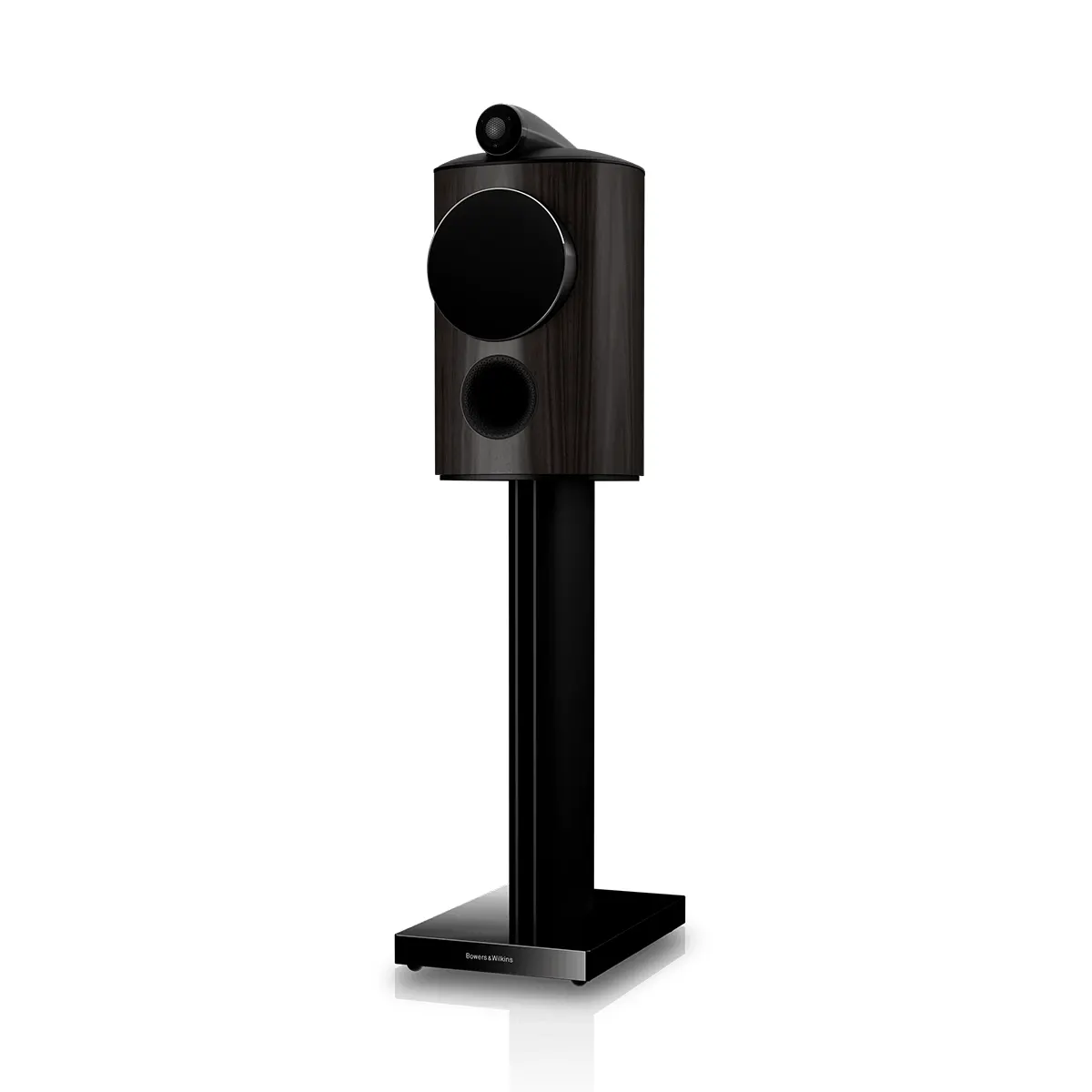

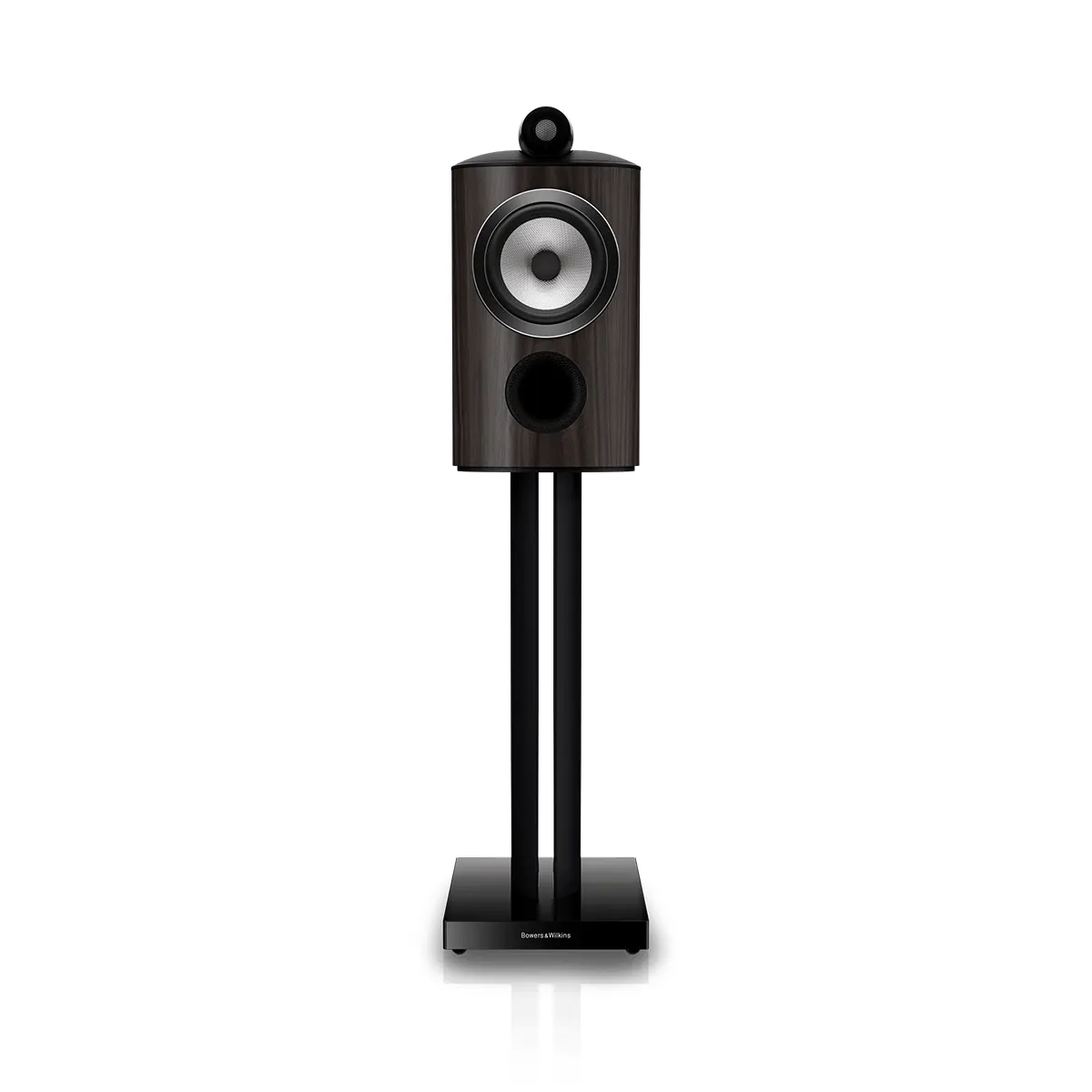

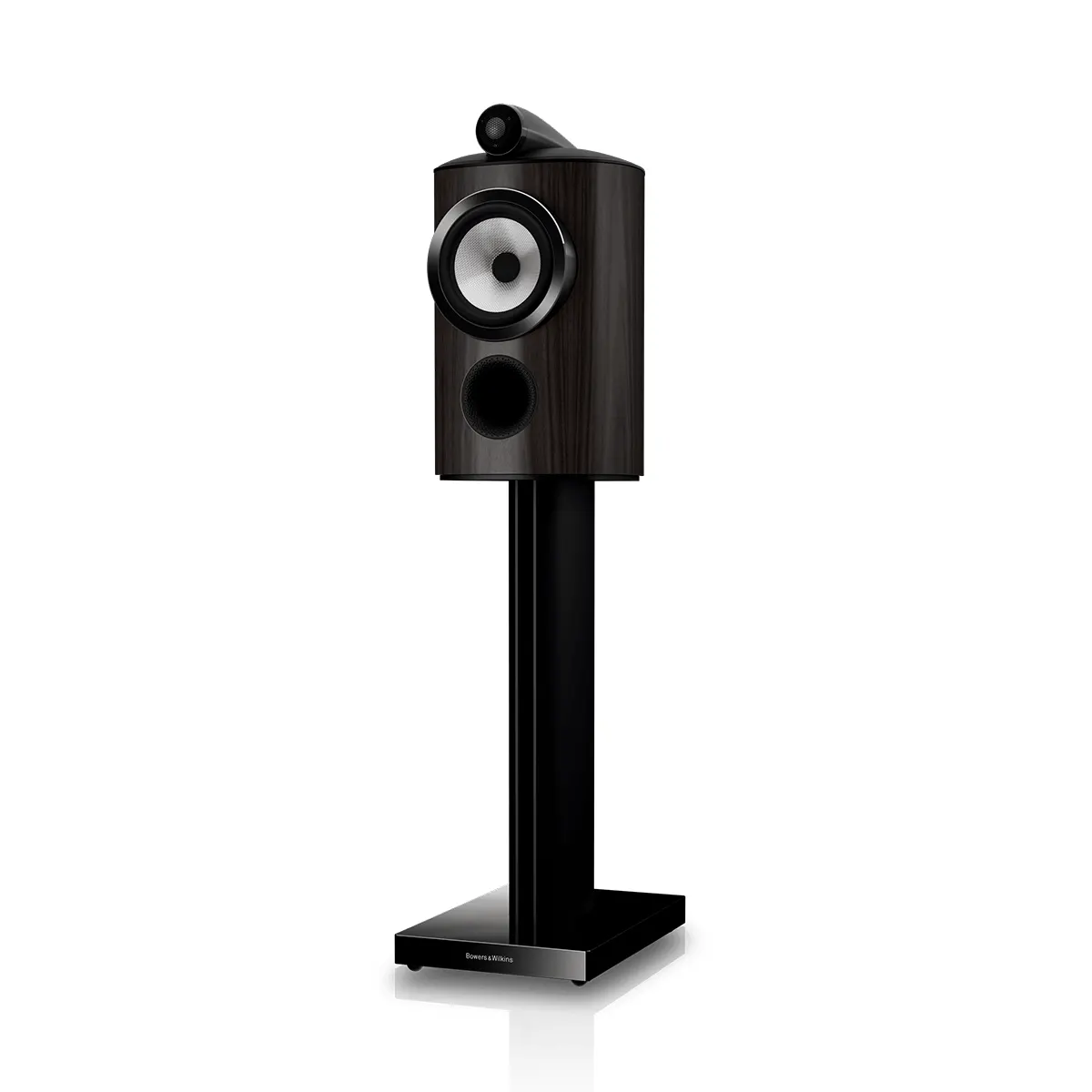

Dark Walnut

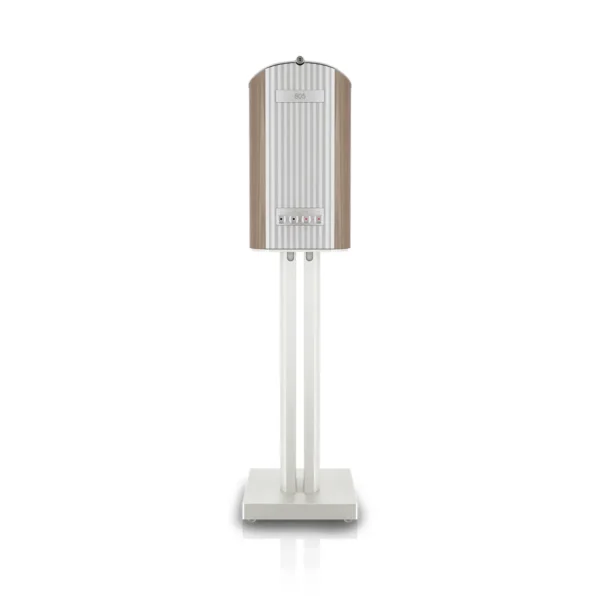

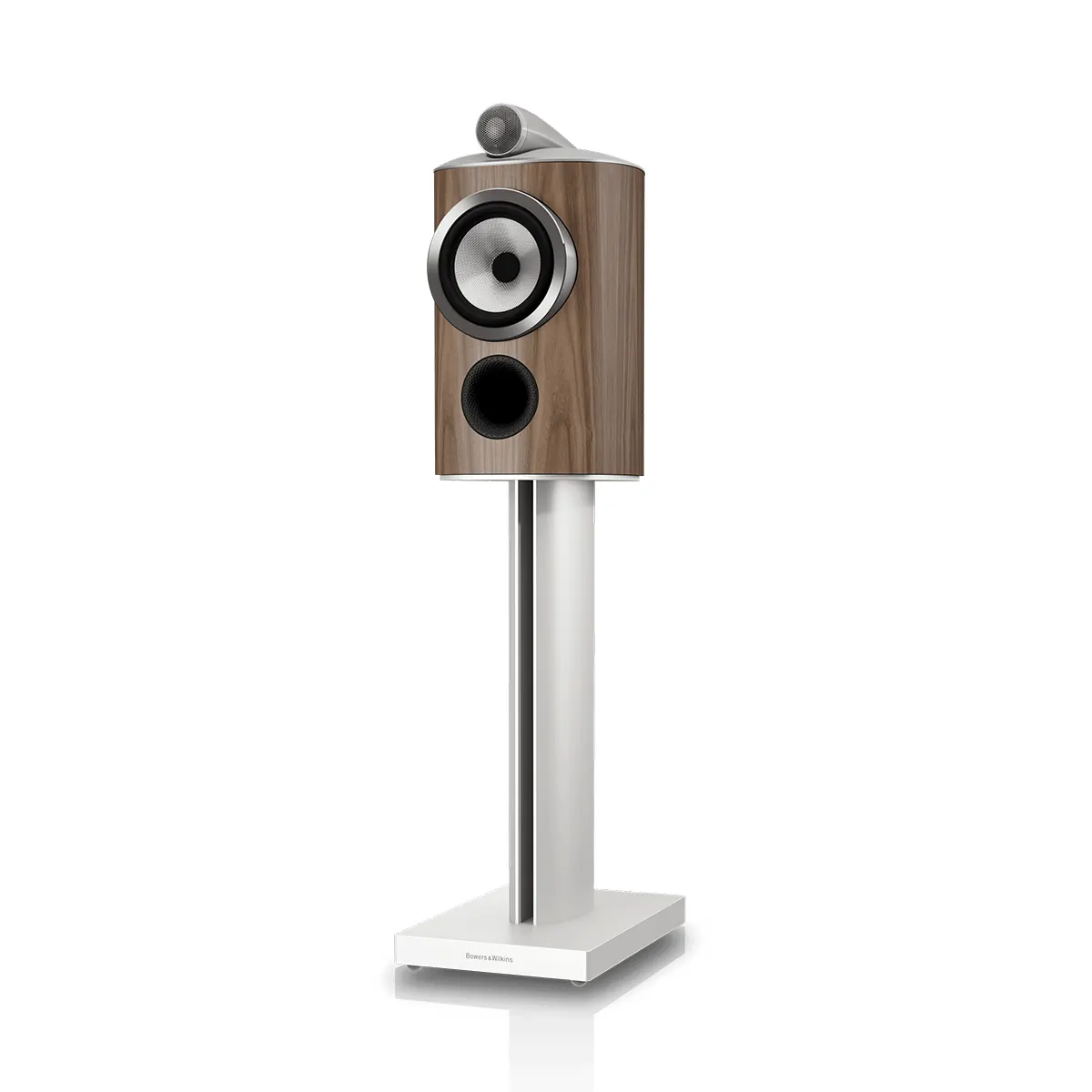

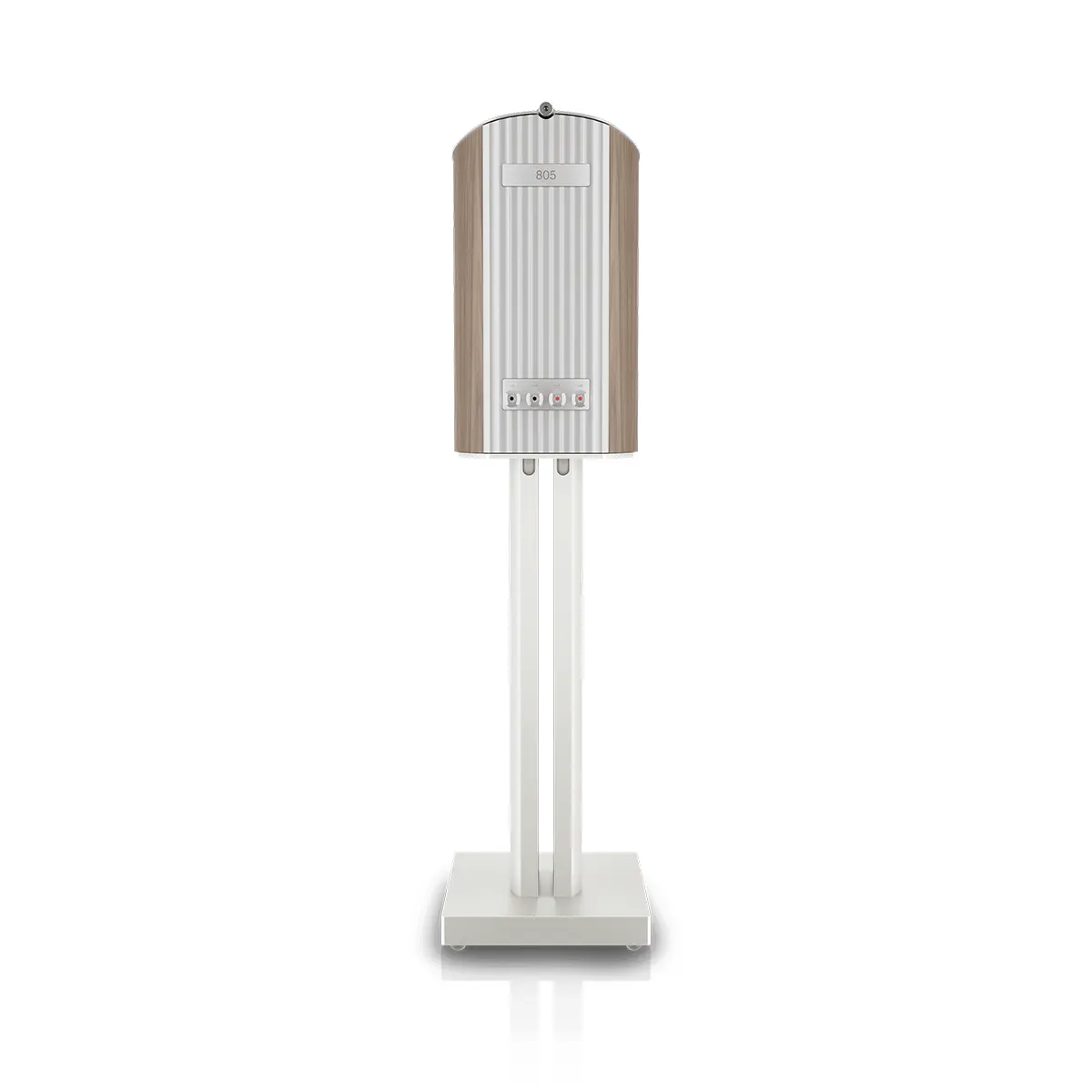

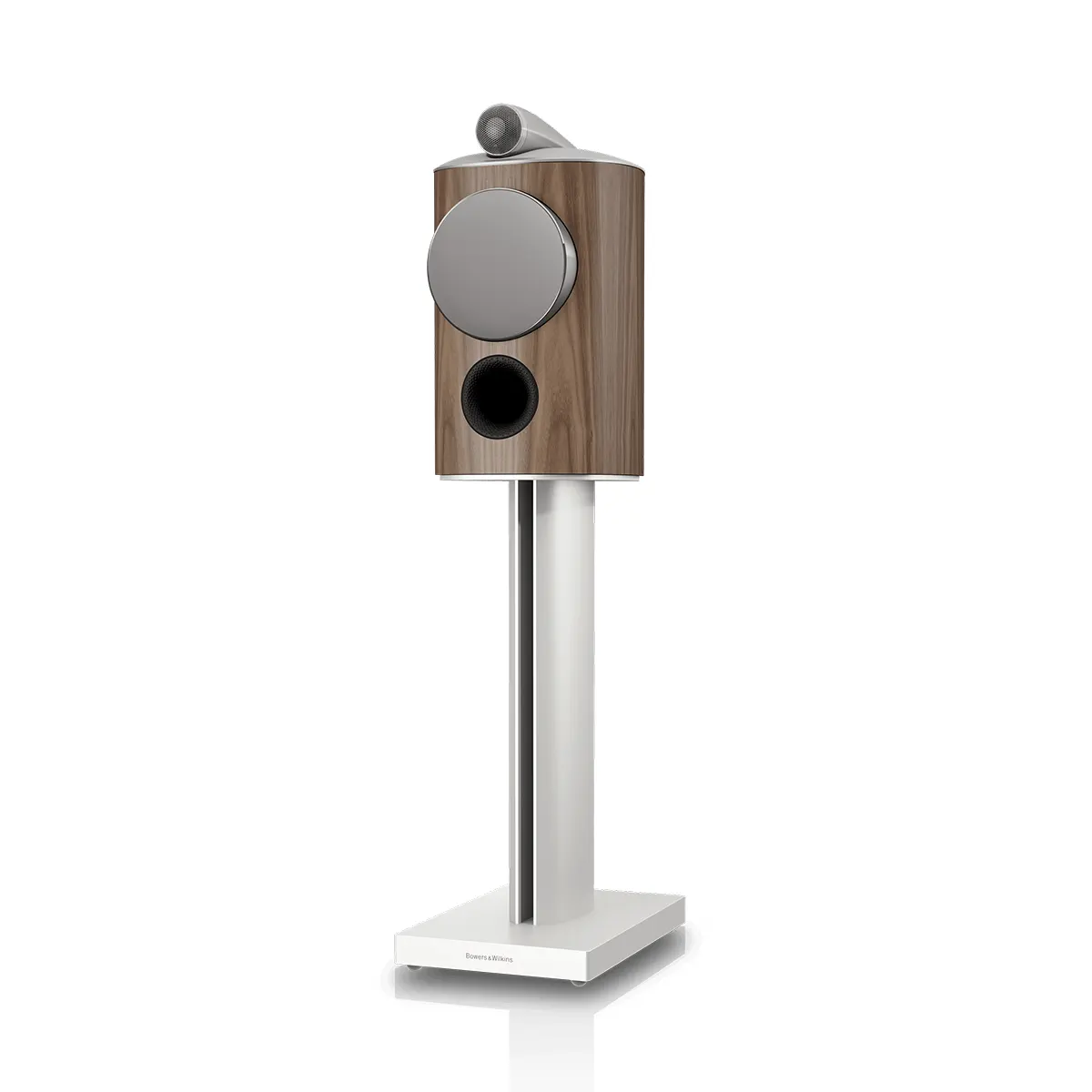

Light Walnut
Grille finishes
Black (Stealth Black and Dark Walnut)
Grey (Warm White and Light Walnut)
Accessories
FS-805 Black, Stand: Titanium
