| Amplification |
Channels |
5.2 |
| Decodable Channels |
5.1 |
| Amp Channels |
5 |
| Output Power |
70 W (8 ohms, 20 Hz – 20 kHz, 0.09% THD, 2-ch driven) / 145 W (6 ohms, 1kHz, 10% THD, 1ch driven) |
| Bi-amp Capable |
Yes |
| Audio |
Surround Sound Decoding Formats |
Dolby Atmos, Dolby True HD, Dolby Digital Plus, Dolby Digital, DTS |
| Surround Sound Post Decoding Formats |
Dolby Surround |
| Network Decoding Formats |
– |
| USB Decoding Formats |
MP3, MPEG4-AAC, WMA, WAV |
| HDMI Decoding Formats |
PCM (8ch max) |
| Sound Modes |
Pure Direct, Straight, Movie, All Channel Stereo, 2 Channel Stereo, Music, Night |
| Zone B |
Yes |
| Room Calibration |
Room Correction |
| Other Features |
Dialogue Level, Subwoofer Trim, Extra Bass, Lip Sync |
| HDMI |
HDMI |
4 Inputs / 1 Output |
| HDMI Features |
HDMI 2.1, 8K 60Hz/4K 120Hz, eARC, ARC, VRR / ALLM / QMS, HDCP 2.3, CEC, Auto Lip Sync, Deep Color, x.v. Color, HD audio playback |
| High Dynamic Range Support |
HDR (High Dynamic Range), HDR10+, Dolby Vision, Hybrid Log-Gamma |

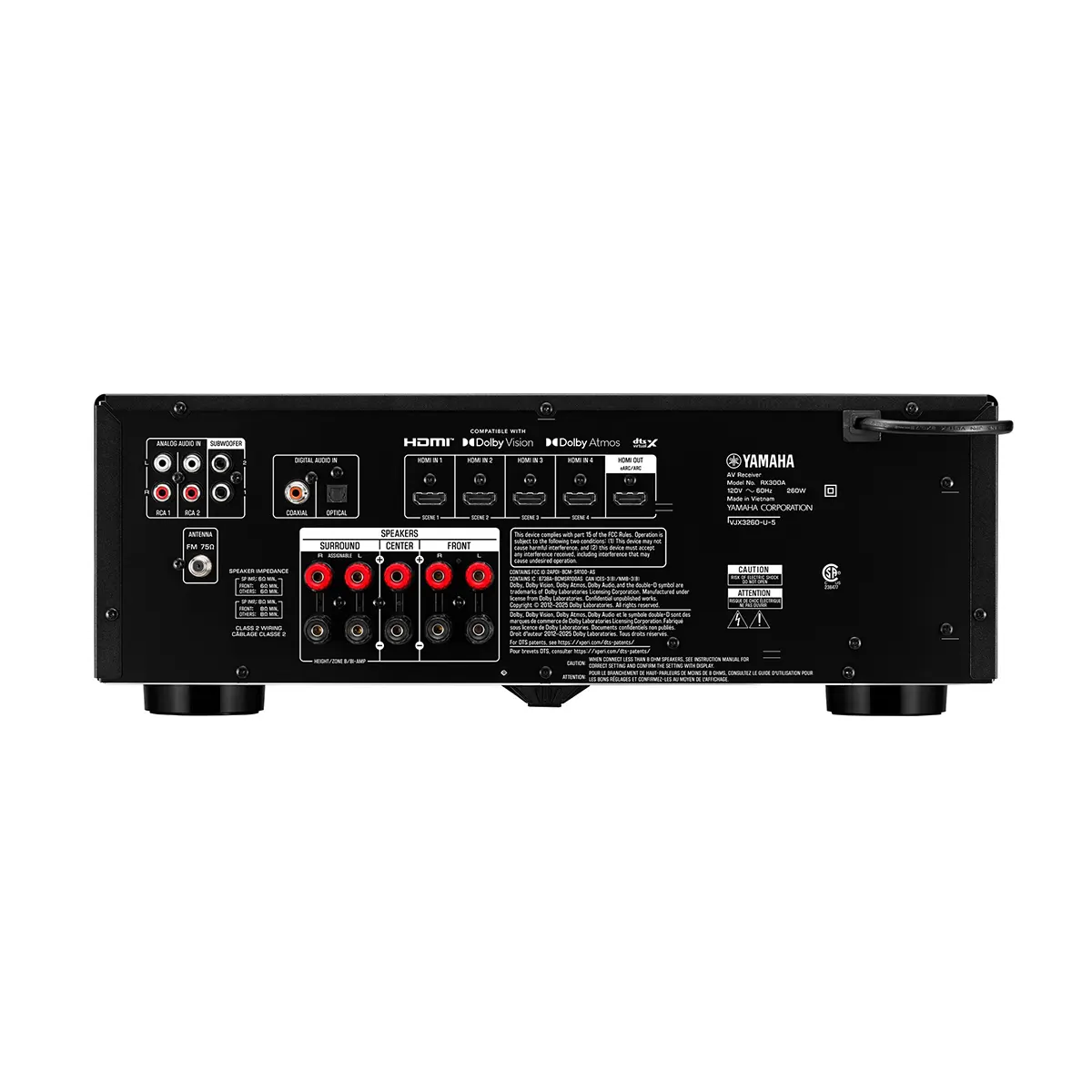

| Connectivity |
Speaker Output |
5 (binding post terminals) |
| Headphone Output |
1 |
| Subwoofer Pre-outs |
2 |
| HDMI |
4 Inputs / 1 Output |
| Analog RCA Input |
2 |
| Optical Input |
1 |
| Coaxial Input |
1 |
| USB |
1 (Audio File Playback from a Mass Storage Device, Firmware Updates) |
| FM/AM Tuner |
Yes / No |
| Bluetooth |
Yes (Ver. 5.3, Multipoint) |
| Streaming |
– |
| Wi-Fi / Ethernet Port |
– |
| General |
Power Consumption |
260 W |
| Standby Power Consumption |
≤0.3 W |
| Auto Power Standby |
Yes |
| Dimensions (Unit) |
434 W x 157 H x 319 D mm; 17-1/8″ W x 6-1/8″ H x 12-1/2″ D |
| Dimensions (Package) |
525 W x 230 H x 400D mm; 20-5/8″ W x 9-1/8″ H x 15-3/4″ D |
| Weight (Unit) |
7.6 kg; 16.8 lbs. |
| Weight (Package) |
9.1 kg; 20.1 lbs. |
| App |
– |

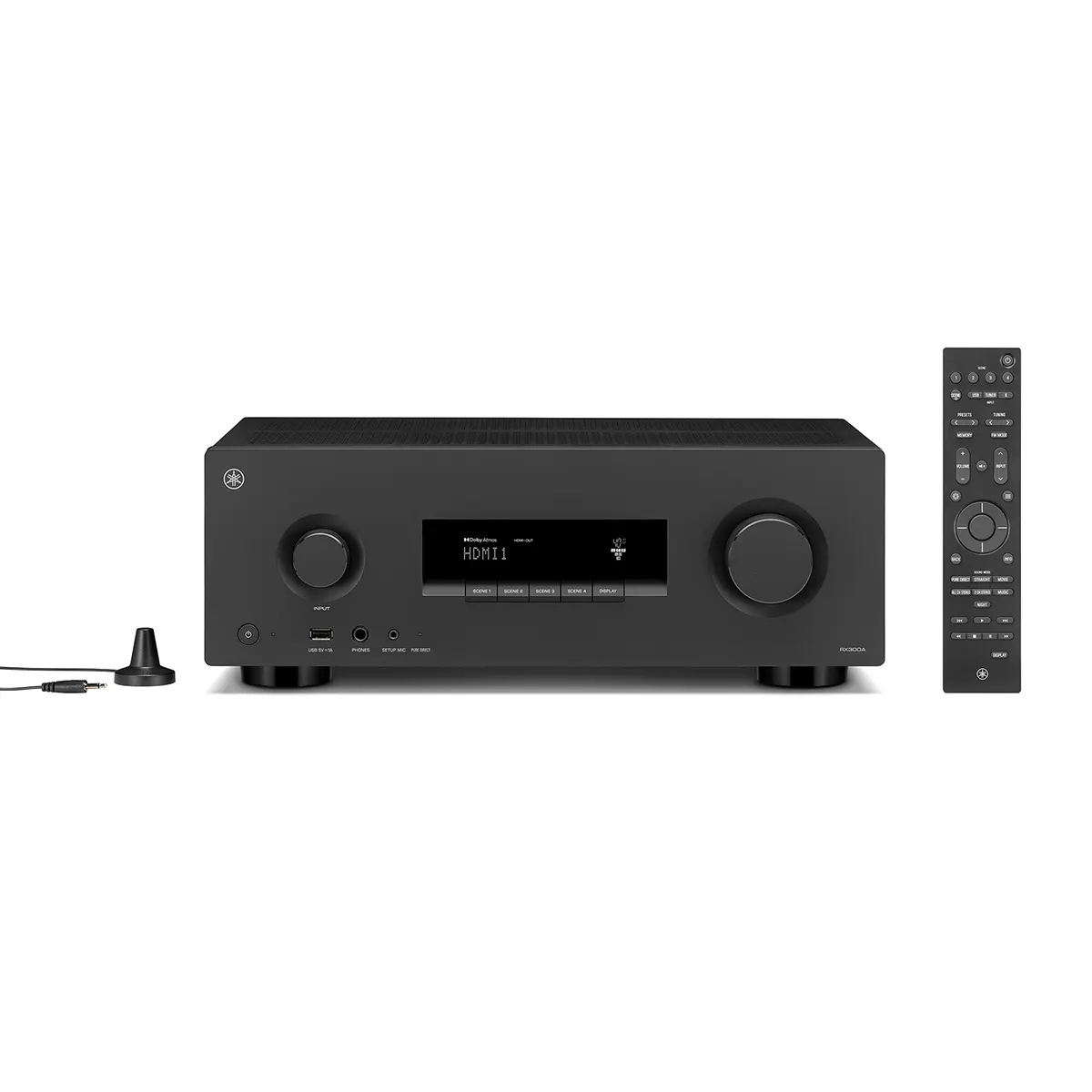

| Included Accessories |
Remote Control, Batteries, FM Antenna, Setup Mic, Microphone Stand, Quick Guide, Safety Guide |
