Description
Multichannel Surround
- DTS HD Master, DTS:X, DTS:X ProYes, Yes, Yes
- DTS Neo:X, DTS Neural:XNo, Yes (15ch)
- DTS Virtual:XYes
- IMAX EnhancedYes
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos MusicYes, Yes, Yes, Yes
- Dolby ProLogic Ilz, Dolby SurroundNo, Yes
- Auro 3DYes
- 360 Reality Audio / MPEG HYes, Yes
- Multichannel StereoYes
- Max. Number of Processing (Pre-Amp) Channels15.4
Sound Enhancements

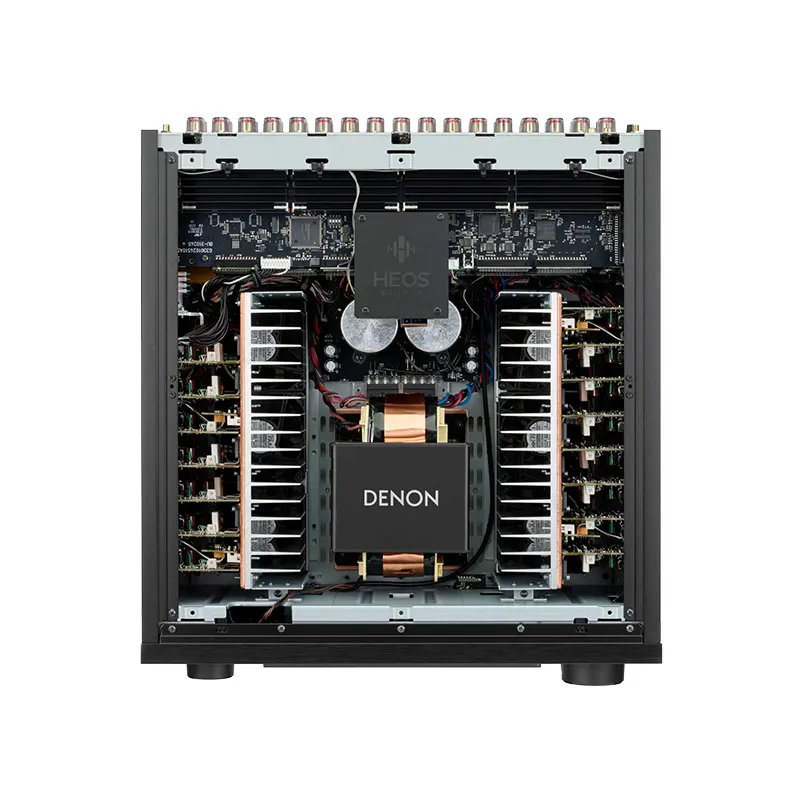

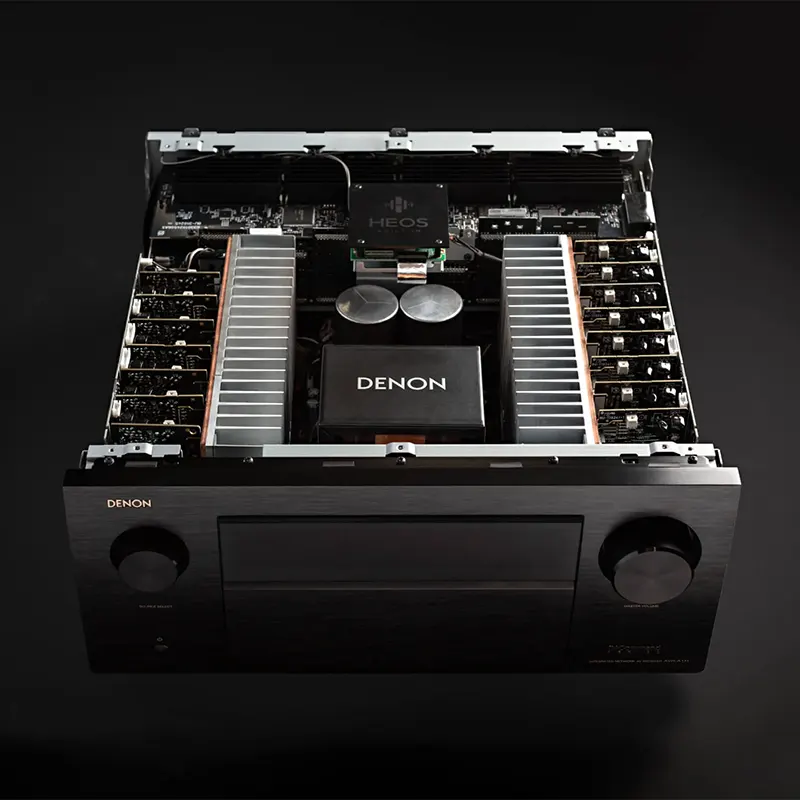

- Mono Block Power Amp ConstructionYes (L/R separated)
- Discrete Power AmplifierYes
- D.D.S.C. HD DigitalYes (32 bit)
- Pure DirectYes
- Gold Plated RCA TerminalsYes
- Clock Jitter ReducerYes
- Alpha ProcessingAL32 Processing Multichannel
- AudysseyMultEQ XT32
- Audyssey Dynamic EQ, Dynamic VolumeYes, Yes
- Audyssey LFCYes
- Dirac Live UpgradabilityYes
- Compressed Audio RestorerYes
Network
- Media ServerYes

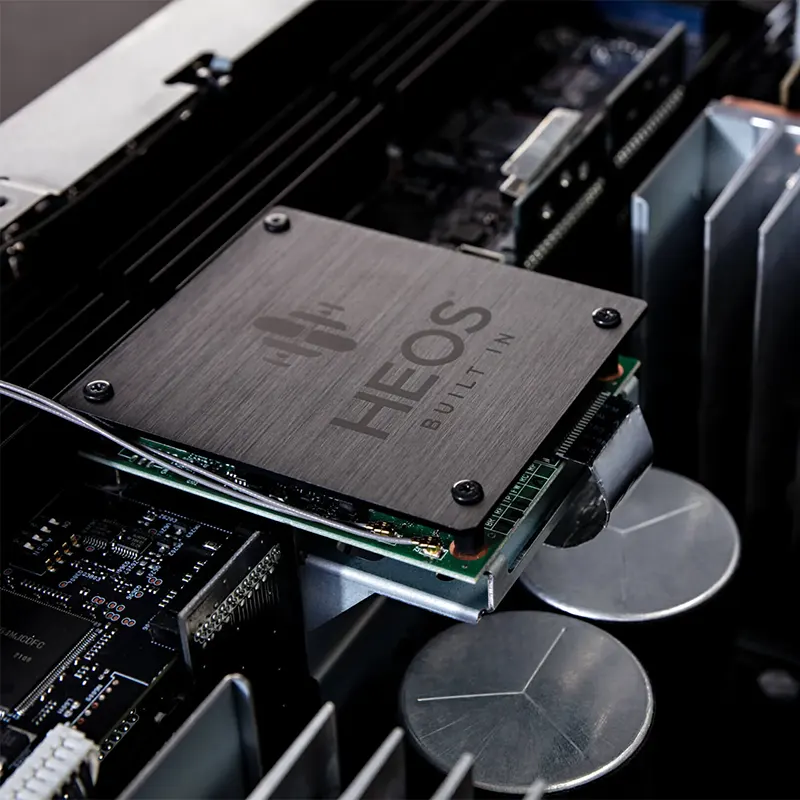

- HEOS Wireless Multi-Room TechnologyYes
- Alexa / Google Voice Assistant / Apple HomePodYes, Yes, Yes
- Lossy Formats: MP3, WMA, AACYes, Yes, Yes
- Lossless Formats: FLAC, ALAC, WAVYes, Yes, Yes
- Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit)Yes, Yes, Yes
- DSD Audio StreamingYes (2.8/5.6MHz)
- AirPlay 2Yes
- TuneInYes
- Spotify ConnectYes
- PandoraYes
- SiriusXMYes
- Roon TestedYes
- HEOS App ControlYes
- Compatible with Remote APP for Smart PhonesDenon 2016 AVR Remote
- Ethernet PortsYes
- Wi-FiYes
- BluetoothYes
HDMI
- HDMI Inputs: Back, Front7, No
- HDCP2.3 supportYes
- HDMI Outputs: Main, Zone2, 1
- HDMI In, Out7, 3
- HDMI 2.1: 8K/60Hz AB, 4K/120Hz ABYes, Yes
- HDR, HLG, Dolby Vision, HDR10+, Dynamic HDRYes , Yes, Yes, Yes, Yes
- ALLM (Auto Low Latency Mode) Pass-through for gamingYes
- Variable Refresh Rate, Quick Frame Transport, Quick Media SwitchingYes, Yes, No
- 3D Signal Pass-throughYes
- 8K Signal Pass-Through, Scaling, GUI OverlayYes, Yes, Yes
- DSD Audio CapabilityYes
- Audio Return Channel (ARC), Enhanced ARCYes, Yes
- Auto LipSyncYes
Multi-room CI
- Multi-Room Zones3
- Zone Audio Source: HDMI; Optical, Coax, Network, USB; AnalogYes (2ch), Yes (2ch), Yes, Yes
- Zone Audio Output: Speaker, Pre-OutYes, Yes
- Zone HDMI Output from HDMI SourceYes
- IP Control, RS232 Control, Web Control, App ControlYes, Yes /Yes, Yes
- Remote In / OutYes, Yes
- DC Trigger Output2
- HDMI DiagnosticsYes
Others
- Auto Speaker Setup by MicrophoneAudyssey MultEQ XT32

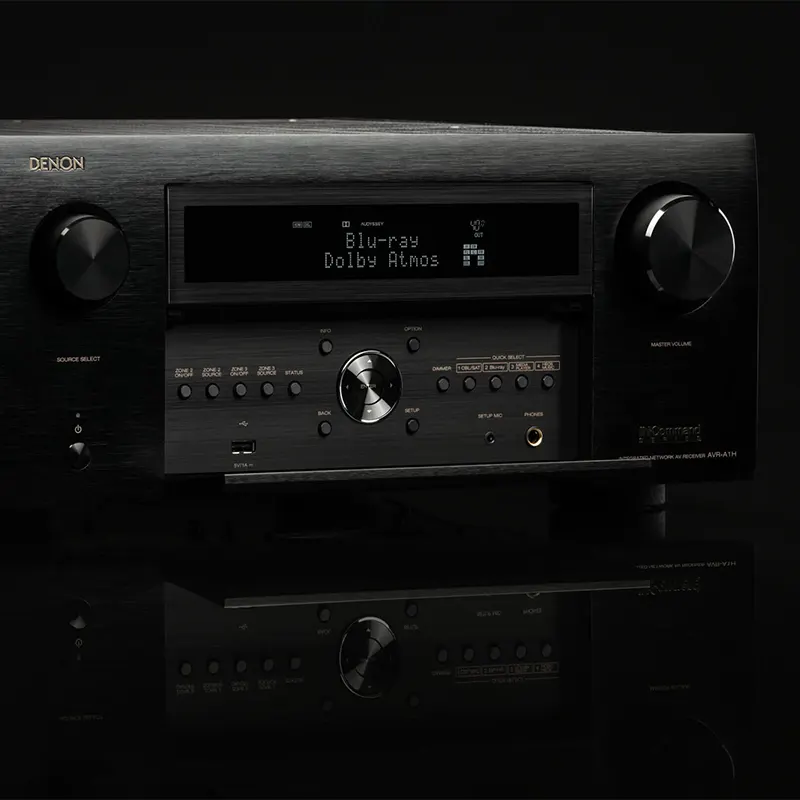

Dirac Live (upgrade) - Front Display2-Line FLD
- GUI Languages3
- Setup AssistentYes
- Quick Select Plus, Quick SelectYes, No
- Variable CrossoverYes
- Optimized Bass RedirectionYes
- Bass SyncYes
- ECO ModeYes
- Auto Power OffYes
- Sleep TimerYes

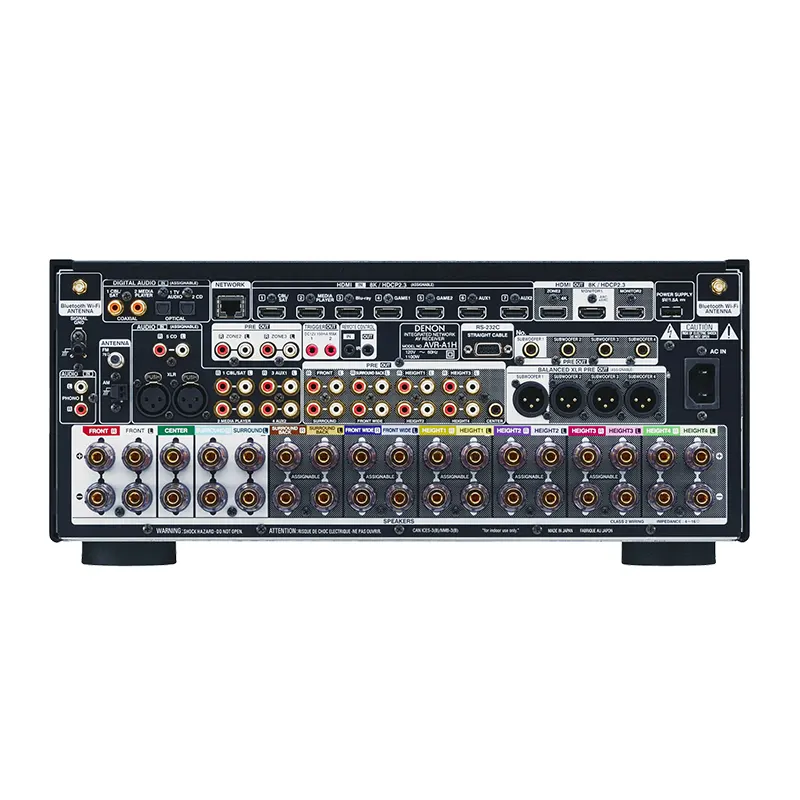

Inputs Outputs
- VIDEO
- Multi-Room Video Out: Video, HDMINo, Yes
- AUDIO
- Analog In, Out5 (1x XLR), No
- Phono (MM) InYes
- Digital In: Optical, Coaxial2, 2
- Multi-Room Out: Analog, Digital2, No
- Multichannel Pre-outYes (17.4)
- Subwoofer Out4 (independent)
- OTHER

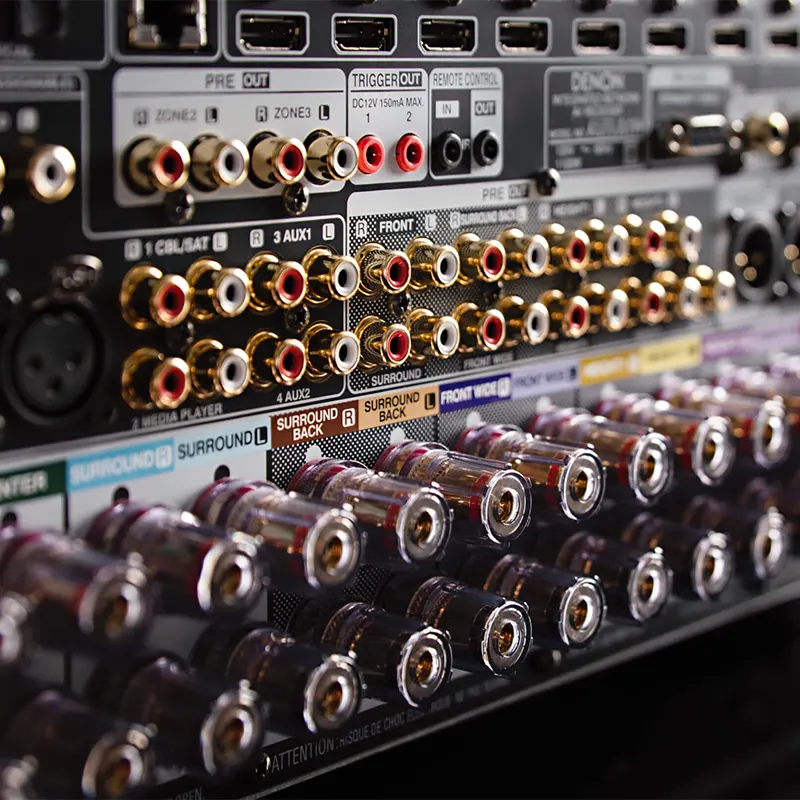

- Speaker Terminal: Gold-Plated Screw, Regular ScrewYes, No
- Number of Speaker Terminals17
- Speaker A / BAssignable
- Bi-amp DriveAssignable
- Multi-Room Speaker TerminalAssignable
- Front Inputs: Audio, Composite, Digital (Opt), HDMI, USBNo, No, No, No, Yes
- USB Audio, Made for iPod, Made for iPhoneYes, No, No
- AM/FM TunerYes
Specifications
- Number of Power Amps15
- Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive)No
- Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive)150W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)190W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive)260W
General

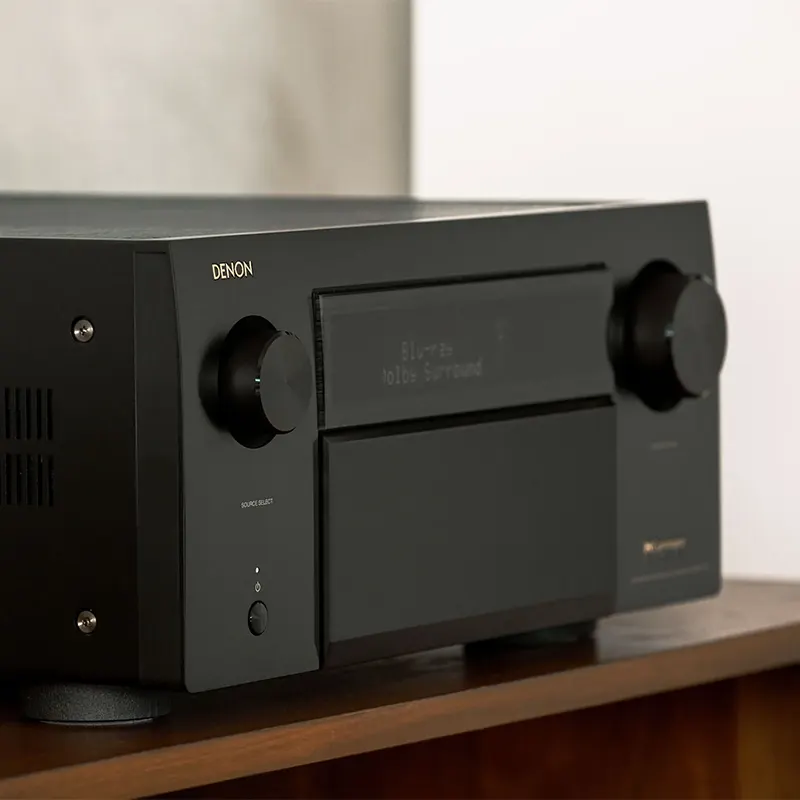

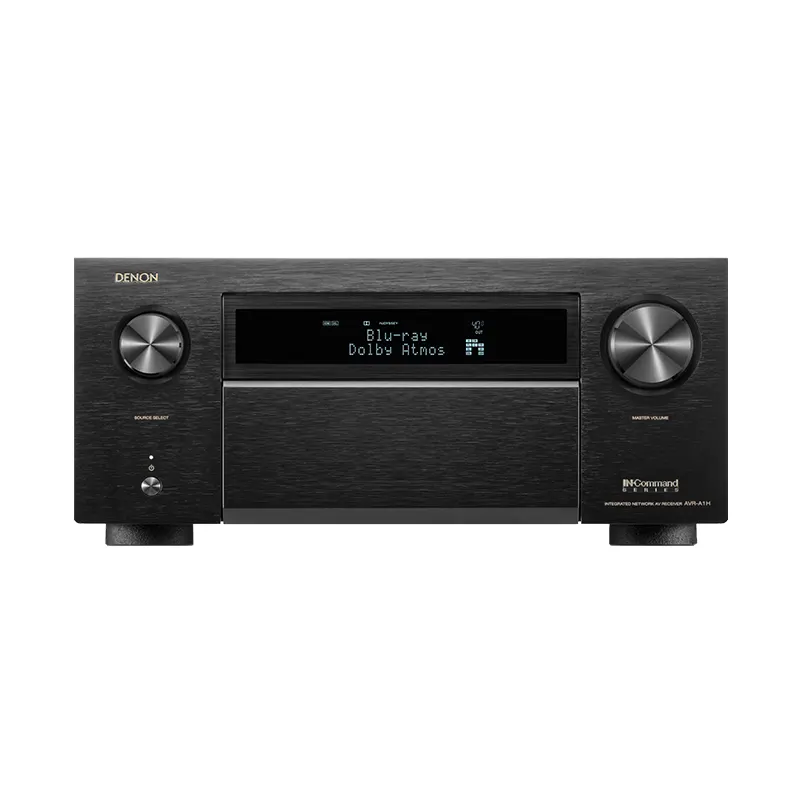

- Metal Front PanelYes
- System Remote ControlRC-1250
- Pre-Programmed, Learnable, LCD DisplayYes, Yes, Yes
- Power Consumption in W900
- Power Consumption No-Sound (ECO On / Off) in W70W/125W
- Standby Consumption in W0.1
- CEC Standby Consumption in W0.5
- Network Standby Consumption in WLess than 2.0
- Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches17.1 x 19.6 x 7.7
( 17.1 x 19.6 x 10.2 )
【 17.1 x 19.4 x 7.7 】 - Weight in LBS70.5
- Weight in LBS (Packaging)80 (TBD)
